OPOS-CAM™ represents the fourth generation evolution of Summa's revolutionary OPOS contour cutting alignment system – a factory upgrade option now available on all new Summa S2 T75, S2 T140 and S2 T160 contour cutting plotters.
Precision-engineered to increase workflow efficiency when contour cutting printed graphics, signs, labels, vehicle wraps, decals and more, OPOS-CAM is the ideal choice for volume-driven environments that require ultra-fast yet meticulous automated cutting for short or long run jobs.
By combining advanced camera optics technology with Summa's highly intelligent CameraControl recognition software, OPOS-CAM scores lightning-fast marker-recognition speeds (10 times faster than competing systems) for a wide array of media, including laminate materials.
Coupled with Summa's state-of-the-art TrueTangential™ cutting head, all-powerful servomotors and exclusively patented MicroSprocket™ drive, Summa T Series operators experience unprecedented speed, confidence and accuracy - the kind of performance others can only dream about.

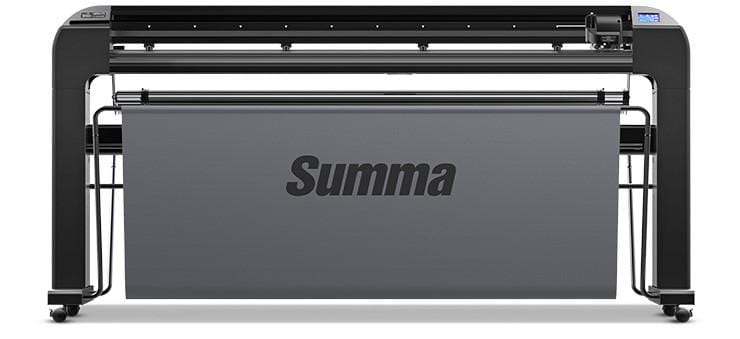

|MODEL||Summa S2 T160 with OPOS-CAM|
|CUT TYPE||True Tangential with OPOS-CAM and Drag Knife Cutting Mode Capability|
|CUT WIDTHS||62.2-inch (158 cm), Extended Mode: width of the material|
|CUT SPEED||All S2 models cut at speeds up to 56 inches (1414 mm) per second diagonal|
|AXIAL ACCELERATION||Up to 4 G|
|MAXIMUM ACCELERATION||Up to 5.5 G diagonal|
|REPEATABILITY||Within ± 0.004 in. (0.1 mm) on plots up to 40 ft. (12 m) long|
|TRACKING||164 ft. (50 m) long|
|CUT FORCE||0-600 grams of down-force, in 5 gram increments|
|DISPLAY LANGUAGES||English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese|
|POWER REQUIREMENTS||AC 100V to 240V ±10% 48-62Hz, 85 VA maximum|
|DIMENSIONS||88.6 (W) x 26.8 (D) x 43.7 (H) in. 225 (W) x 68 (D) x 111 (H) cm|
|SHIPPING WEIGHT||251 lbs (114 kg)|
|OPERATING TEMPERATURE||59˚ to 95˚F (15˚ to 35˚C)|
|STANDARD ACCESSORIES||WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Blade Holder, Standard Nose Piece, 2 Standard 36° Tangential Blades, Thick Material Nose Piece, 1 Thick 60° Blade, Tangential Drag Holder, 1 Standard 36° Drag Blade, Pouncing Pin and Holder, T Pen holder, 1 Ball point pen, Pouncing and Pen Nose Piece, 2 Cut-off Razor Blades, Blade insertion tool, Stand and Basket.|
|OPTIONAL ACCESSORIES||Motorized Take-Up Roller, Media Rack|
|WARRANTY (USA)||Two-year parts and labor limited warranty, toll-free technical support|
