Description

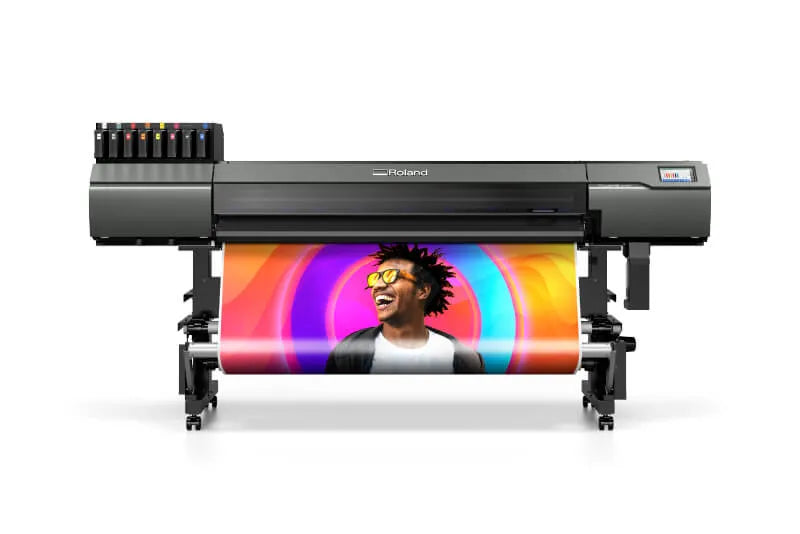

Combining the flexibility of print and cut, the benefits of UV-LED printing and TrueVIS heritage, the LG series adds a new dimension to graphics printing. Staggered print heads, ECO-UV inks, and Ture Rich Color combined with user-friendly features makes the LG the ultimate in professional UV print and cut.
Specifications
- Staggered print heads, ECO-UV inks, and Ture Rich Color combined with user-friendly features makes the LG the ultimate in professional UV print and cut
- Easy-to-operate, and intuitive 7″ LCD touchscreen control panel
- Automated media calibration saves time and material
- A redesigned chassis, high-quality components, and a variety of media handling improvements
- Newly designed, adjustable media take-up unit accommodates rolls of different sizes
- One touch media clasp makes loading media rolls easy for a single operator
- Combine Orange and Red inks to push the color boundaries of digital printing
- High opacity white ink formulated to produce high-quality window graphics with economical ink usage
Popular Applications
- Backlit Graphics
- Window Graphics
- Stickers and Labels
- Packaging Prototypes
- Signange
- POP and Displays
- Specialized Art Prints
MODEL | LG-540 |
PRINTING TECHNOLOGY | Piezo ink-jet method |
ACCEPTABLE MEDIA WIDTHS | 11.7 to 54 in. (297 to 1,371 mm) |
ACCEPTABLE MEDIA THICKNESS | Maximum 39.3 mil (1.0 mm) with liner for printing, Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22mm) without liner for cutting |
ACCEPTABLE MEDIA ROLL OUTER DIAMETER | Maximum 9.8 in. (250 mm) |
ACCEPTABLE MEDIA ROLL WEIGHT | Maximum 77 lbs (35 kg) |
ACCEPTABLE MEDIA CORE DIAMETER | 3 in. (76.2 mm) or 2 in. (50.8 mm) |
PRINTING/CUTTING WIDTH*1 | Maximum 52.9 in. (1,346 mm) |
INK TYPE | ECO-UV (EUV5P) |
INK CAPACITY | 750 ml |
INK COLORS |
Eight colors (Cyan, Magenta, Yellow, Black, Gloss, Primer, White, and Red) Eight colors (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, and Red) Eight colors (Cyan, Magenta, Yellow, Black, Primer White, Orange, and Red) Seven colors (Cyan, Magenta, Yellow, Black, White, Orange, and Red) Seven colors (Cyan, Magenta, Yellow, Black, Gloss, Primer, and White) Six colors (Cyan, Magenta, Yellow, Black, Gloss, and White) Four colors (Cyan, Magenta, Yellow, and Black) |
INK CURING UNIT | Built-in UV-LED lamp |
PRINTING RESOLUTION | Maximum 1200 x 1200 dpi |
PRINTING SPEEDS | 315 sqft/hr at 720 x 600 dpi |
CUTTING SPEED | 10 to 300 mm/s (0.39 to 11.8 in/s) |
CUTTING BLADE FORCE*2 | 30 to 500 gf |
CUTTING BLADE OFFSET | 0 to 0.059 in (0 to 1.5 mm) |
MEDIA HEATING SYSTEM | Front heater set temperature: 86 to 131 °F (30 to 55 ℃) |
CONNECTIVITY | Ethernet (10BASE-T/100BASE-TX, automatic switching) |
POWER CONSUMPTION | During Operation: 800 W, During Sleep Mode: 85 W |
ACOUSTIC NOISE LEVEL | During Operation: 63 dB (A) or less, During Standby: 53 dB (A) or less |
DIMENSIONS/WEIGHT | 104.3[W] x 29.5[D] x 55.6[H] in 2,648[W] x 748[D] x 1412[H]mm, 395lb (179kg) |
OPERATING ENVIRONMENT | Power on: Temperature: 68 to 89.6 °F (20 to 32 °C), humidity: 35 to 80 % RH (no condensation), Power off: Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation) |
Notes
*1 The length of printing or cutting is subject to the limitations of the program.
*2 500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
Downloads
Roland TrueVIS LG-540 54-Inch Printer Cutter Data Sheet
