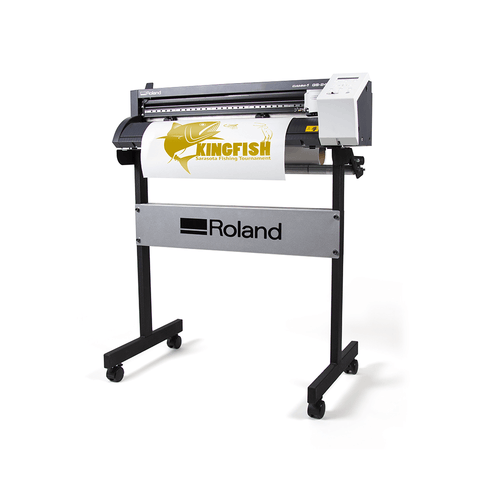

Roland CAMM-1 GS-24 24" Desktop Vinyl Cutter (Stand Included)
Roland CAMM-1 GS-24 24-Inch Desktop Vinyl Cutter with Stand
The Roland CAMM-1 GS-24 desktop cutter is precision and efficiency to the max. With a completely redesigned cutting carriage and blade holder, the GS-24 offers great stability, up to 10x overlap cutting and down force of up to 350 grams so that you can cut like never before — even on thick, dense substrates. The GS-24 is Roland's best desktop cutter ever.
Features at a glance:
- Perfect for cutting vinyl, paint mask, reflective vinyl, twill, heat transfers, sandblast material and more
- Stand included with purchase that holds roll media and offers smooth set up
- Overlap cutting (up to 10x), for cutting thicker media like magnetic materials and card stock
- Efficiently cuts up to 20-inches-per-second, providing maximum productivity
- Roland CutStudio software (included)
- Three-Year Trouble-Free Warranty
Popular Applications:
- Vehicle Window Tint
- Apparel
- Labels and Decals
- Signs
- Wall Graphics
- Clear Paint Protection Films
- Rhinestone Application
Roland GS-24 Camm-1 Application Overviews
Apparel
Signs & Decals
Specialty Graphics
Specifications
| MODEL | GS-24 |
| MECHANISM/DRIVING METHOD | Media-movement method / Digital control servo motor |
| ACCEPTABLE MEDIA WIDTHS | 2 to 27-1/2 in. (50 to 700 mm) |
| MAXIMUM CUTTING AREA | Width: 22.9 in (584 mm), Length: 984.25 in (25000 mm) |
| MAXIMUM CUTTING SPEED | 19.69 in/s (500 mm/s) (all directions) |
| MAXIMUM CUTTING MEDIA THICKNESS | Up to .04 in (1 mm) |
| CUTTING SPEED/CUTTING FORCE | .4 in to 19.69 in/s (10 to 500 mm/sec) (all directions), 30 - 350 gf |
| MECHANICAL RESOLUTION | 0.000492 in./step (0.0125 mm/step) |
| SOFTWARE RESOLUTION | 0.000984 in./step (0.025 mm/step) |
| DISTANCE ACCURACY*1 | Error of less than ±0.2 % of distance traveled, or ±0.1 mm, whichever is greater |
| REPETITION ACCURACY*1, *2 | 0.1 mm or less |
| INTERFACE | USB interface (compliant with Universal Serial Bus Specification Revision 2.0 Full Speed, Connecting Multiple Units) |
| RE-PLOT MEMORY | 2MB |
| POWER SUPPLY/CONSUMPTION | Dedicated AC adapter, Input: AC 100 to 240 V ±10 % 50/60 Hz 1.7 A, Output: DC 24 V, 2.8 A, Power Consumption: Approx. 30 W (including AC adapter) |
| DURING OPERATION | 70 dB (A) or less (according to ISO 7779) |
| DURING STANDBY | 40 dB (A) or less (according to ISO 7779) |
| DIMENSIONS | 33.5 in (W) × 12.2 (D) × 9.17 (H), [851 (W) x 310 (D) x 235 (H) mm] With Stand: 33.5 in (W) X 12.2 (D) X 40.75 (H), [851(W) X 310 (D) X 1035 mm (H)] |
| WEIGHT (WITH STAND) | 29.77 lbs. [13.5 kg] With Stand: 58 lb. [26 kg] |
| OPERATING ENVIRONMENT | Temperature: 5 to 40°C (41 to 104°F), humidity: 35 to 80 % (no condensation) |
| INCLUDED ITEMS | AC adapter, power cord, blade, blade holder, roller base, alignment tool, USB cable, Set Up guide |
Notes
*1 According to material and cutting conditions as specified by Roland DG Corp. (using the PNS-24 stand, sold separately)
*2 Excluding material expansion and contraction. Provided that media length is under 1600 mm.
