Description
The S Class 3 TC models feature an even more performant camera. Thanks to automatic data processing in the cutter instead of external software, the registration of marks is faster than ever before. Combined with our powerful True Tangential Cutting Technology and knife pressure of up to 1000 gr, these models are designed to deliver true cutting excellence.
Thanks to the Dual Head functionality, the cutter can carry a knife and fiber pen or a knife and creasing tool at the same time. It allows you to work as fast and efficiently as possible. Additionally, a tool tray is provided. It offers a secure storage space for tools not currently in use, conveniently within reach at the back of the cutter for when they're needed
Elevating efficiency, the Smart Object Sorting feature is designed to select the most optimal starting point for cutting objects, every single time. In addition, the unique Smart Paneling function improves cutting accuracy and simplifies post-processing. When paneling is, for example, set to 18in, all objects within this range are cut at once.
Included with the machine is the powerful Summa GoSign software. GoSign allows you to manage your preferred workflow straightforwardly and with great flexibility.

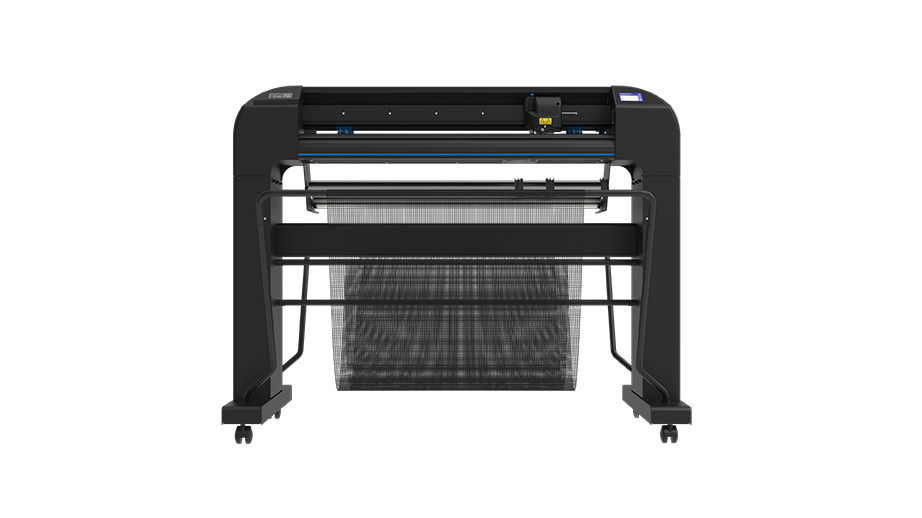

As the smallest roll cutter in the S3 series, the Summa S3 T75 is thoughtfully designed to cater to every user's needs, from beginners to seasoned professionals. With the capability to handle media up to 29.2in (+2.8in in oversized mode), it is perfectly tailored for flex and flock users, as well as label-cutting professionals.
| MODEL | Summa S3 TC75 |
| CUT TYPE | True Tangential with Drag Knife Cutting Mode Capability |
| CUT WIDTHS | 29.2 in. (74.2 cm) (Oversized Mode: +/2.36 in) |
| CUT SPEED | All S3 models cut at speeds up to 56 inches (1414 mm) per second diagonal |
| ACCELERATION | Up to 4.25 G diagonal |
| ACCURACY | 0.2 % of movement or 0.010 in, whichever is greater |
| TRACKING PERFORMANCE | 40 ft max. within guaranteed specifications for media less than 30 in wide |
| CUT FORCE | Up to 1000 grams of cutting force |
| DISPLAY LANGUAGES | English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese |
| CONNECTIVITY | USB; Ethernet, Wifi |
| POWER REQUIREMENTS | 100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum |
| DIMENSIONS | 55.5 (W) x 27.2 (D) x 43.7 (H) in. 141 (W) x 69 (D) x 111 (H) cm |
| SHIPPING WEIGHT | 152 lbs (69 kg) |
| OPERATING TEMPERATURE | 59˚ to 95˚F (15˚ to 35˚C) |
| STANDARD ACCESSORIES | WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Blade Holder, Standard Nose Piece, 2 Standard 36° Tangential Blades, Thick Material Nose Piece, 1 Thick 60° Blade, Tangential Drag Holder, 1 Standard 36° Drag Blade, Pouncing Pin and Holder, T Pen holder, 1 Ball point pen, Pouncing and Pen Nose Piece, 2 Cut-off Razor Blades, Blade insertion tool, Stand and Basket. |
| WARRANTY (USA) | Two-year parts and labor limited warranty, toll-free technical support |
Note: In "Oversized" mode, the tracking performance is no longer guaranteed
Downloads
Summa S Class 3 Series Vinyl Cutter Brochure
