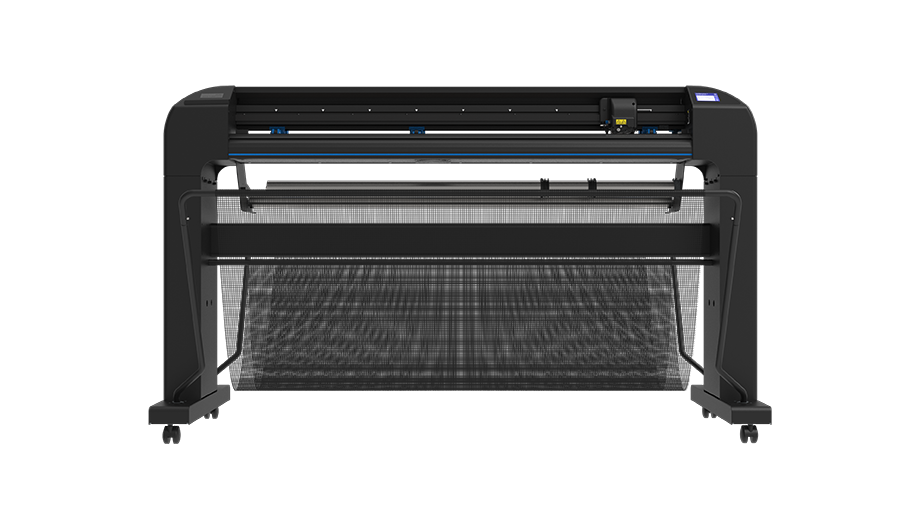

Summa S3 T120 48" Vinyl Cutter

SummaSKU: S3T120
No reviews

Sale price$8,690.00


Thanks to Summa's True Tangential™ cutting head, the S Class 3T Series vinyl cutters deliver the cutting precision of a flatbed while providing the ease and speed of a roll-fed cutter.

The highly engineered tangential cutting heads on the S Class 3T Series have a unique motorized knife, allowing the cutters to achieve unparalleled accuracy and precision down to the smallest details. The True Tangential cutting technology even handles heavy sandblasts, paint masks, and reflective materials.

Elevating efficiency, the Smart Object Sorting feature is designed to select the most optimal starting point for cutting objects, every single time. In addition, the unique Smart Paneling function improves cutting accuracy and simplifies post-processing. When paneling is, for example, set to 18in, all objects within this range are cut at once.

Included with the machine is the powerful Summa GoSign software. GoSign allows you to manage your preferred workflow straightforwardly and with great flexibility.

The Summa S3 120 is a cutting-edge mid-size model designed to handle media up to 47.2in (+2.8 in in oversized mode), making it the ideal choice for medium-scale projects, such as non-prismatic traffic signs and internal signage

MODEL Summa S3 T120
CUT TYPE True Tangential with Drag Knife Cutting Mode Capability
CUT WIDTHS 4.5 to 51.1 in (11.43 to 74.2 cm) (Oversized Mode: +/2.8 in)
CUT SPEED All S3 models cut at speeds up to 56 inches (1414 mm) per second diagonal
ACCELERATION Up to 4.25 G diagonal
ACCURACY 0.2 % of movement or 0.010 in, whichever is greater
TRACKING PERFORMANCE 40 ft max. within guaranteed specifications for media less than 30 in wide. 13 ft max. within guaranteed specifications for media larger than 30 in wide
CUT FORCE Drag Knife: Up to 400 grams / Tangential Knife: Up to 1000 grams
DISPLAY LANGUAGES English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese
POWER REQUIREMENTS 100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum
DIMENSIONS 73.6 (W) x 27.2 (D) x 43.7 (H) in. 187 (W) x 69 (D) x 111 (H) cm
SHIPPING WEIGHT 189 lbs (86 kg)
OPERATING TEMPERATURE 59˚ to 95˚F (15˚ to 35˚C)
STANDARD ACCESSORIES WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Blade Holder, Standard Nose Piece, 2 Standard 36° Tangential Blades, Thick Material Nose Piece, 1 Thick 60° Blade, Tangential Drag Holder, 1 Standard 36° Drag Blade, T Pen holder, 1 Ball point pen, 2 Cut-off Razor Blades, Blade insertion tool, Stand and Basket.
WARRANTY (USA) Two-year parts and labor limited warranty, toll-free technical support

Note: In "Oversized" mode, the tracking performance is no longer guaranteed


Summa S Class 3 Series Vinyl Cutter Brochure
