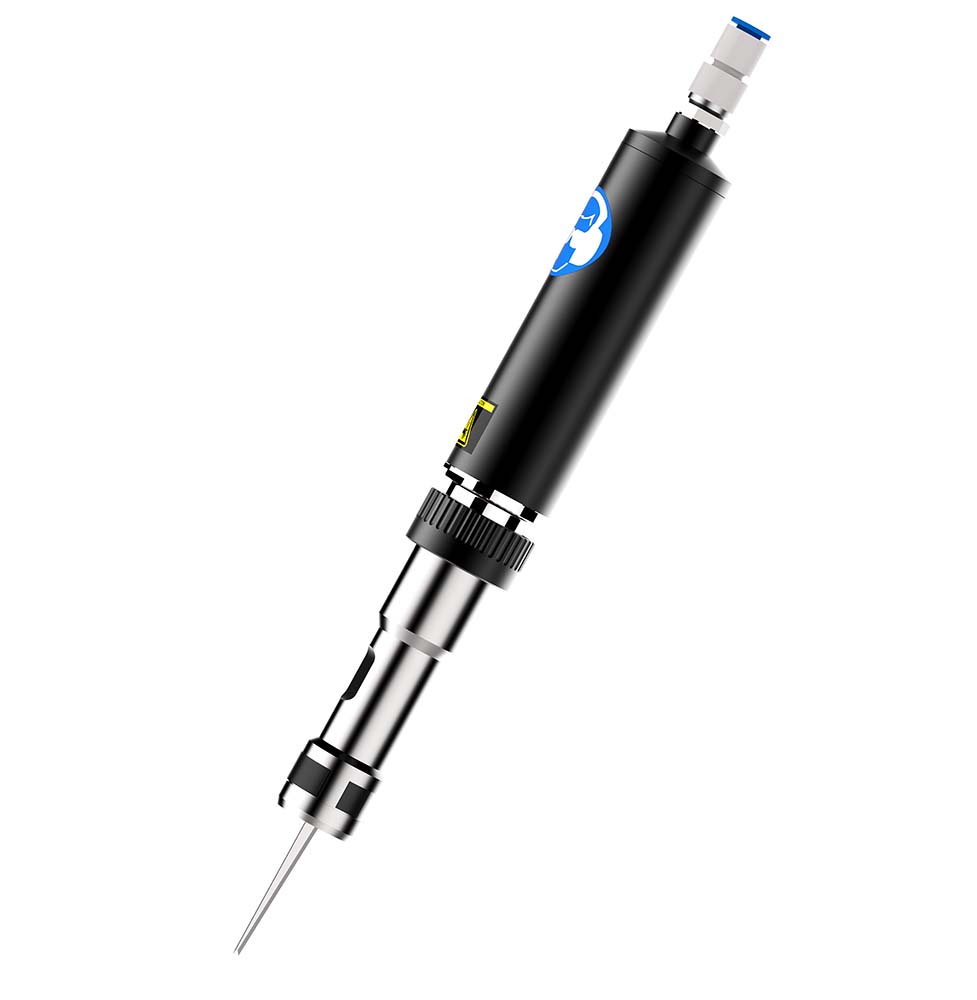

Summa Pneumatic Oscillating Tool-L
Description
The Pneumatic Oscillating Tool-L is capable of cutting materials up to 42mm thick. The robust construction of the tool makes it suitable for cutting thick material, such as honeycomb board, corrugated board, and foam board.
General Info
The Pneumatic Oscillating Tool-L (POT-L) is similar to the POT but is used with a longer type of knife. With this long knife, The POT-L is perfect for cutting soft material with a minimum thickness of 20 mm and a maximum thickness up to 42 mm.
Includes:
- Pneumatic Oscillator with Gliding Disk
- 1 POT-L knife L50 T1.0 with hex key
- Pneumatic Kit, including Pneumatic Oil and Oil Mister

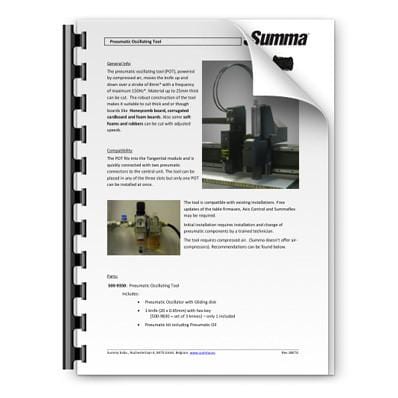

- Installation Guide and Collar Wrench
Note: Air-compressor not included.
Specifications
Stroke: 8mm*
Frequency: 150Hz*
Compressed Air Requirements: 6bar & 78l/min.
It is advised that the compressor have 4-5 times the airflow capacity:
+/- 360l/min
* The Stroke and Frequency may drop depending on the load on the tool.
This tool can be used with the following materials:
Cardboard: | Honeycomb Board >= 10mm Reboard >= 10mm |
Synthetic Materials: | Corrugated Plastic > 5mm |
Composite Sandwich Board: | Foamboard with Paper > 5mm Foamboard with Plastic Foamboard with Aluminum |
Special Materials: |
Foam |
Compatibility
Summa F Series
