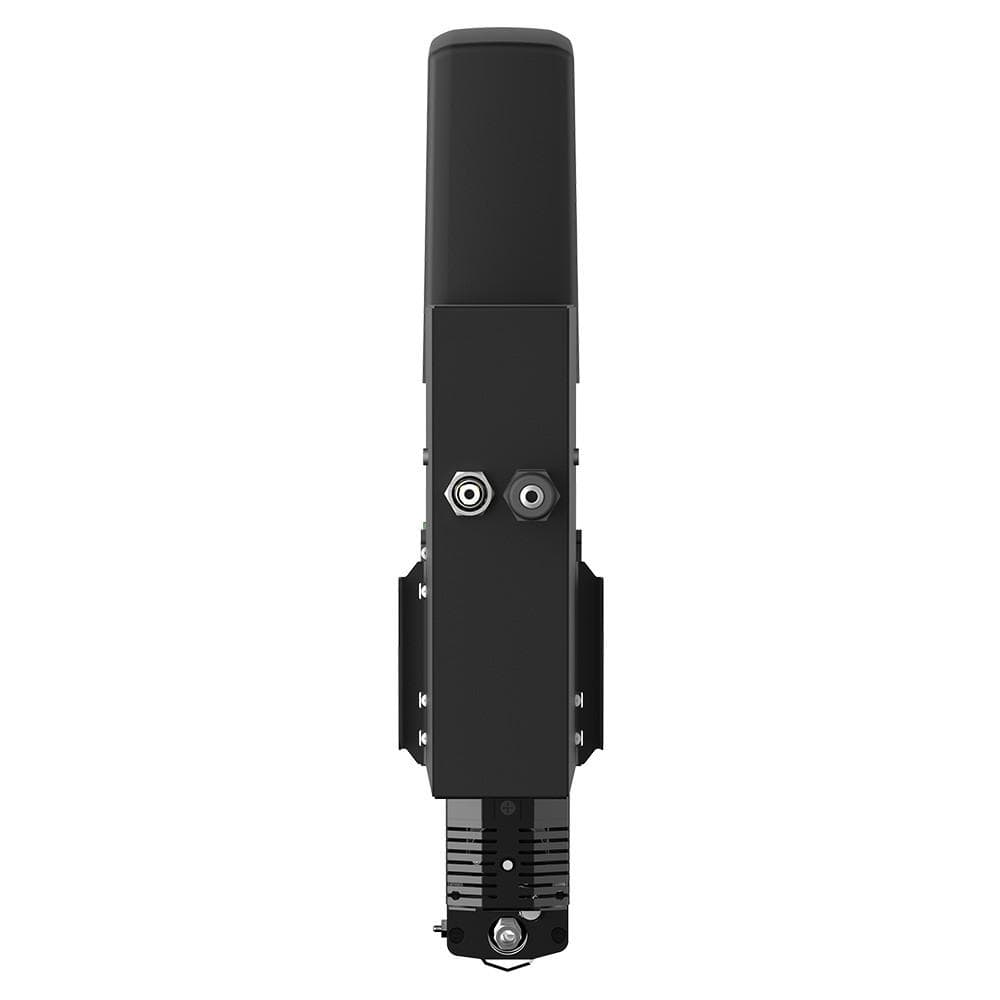

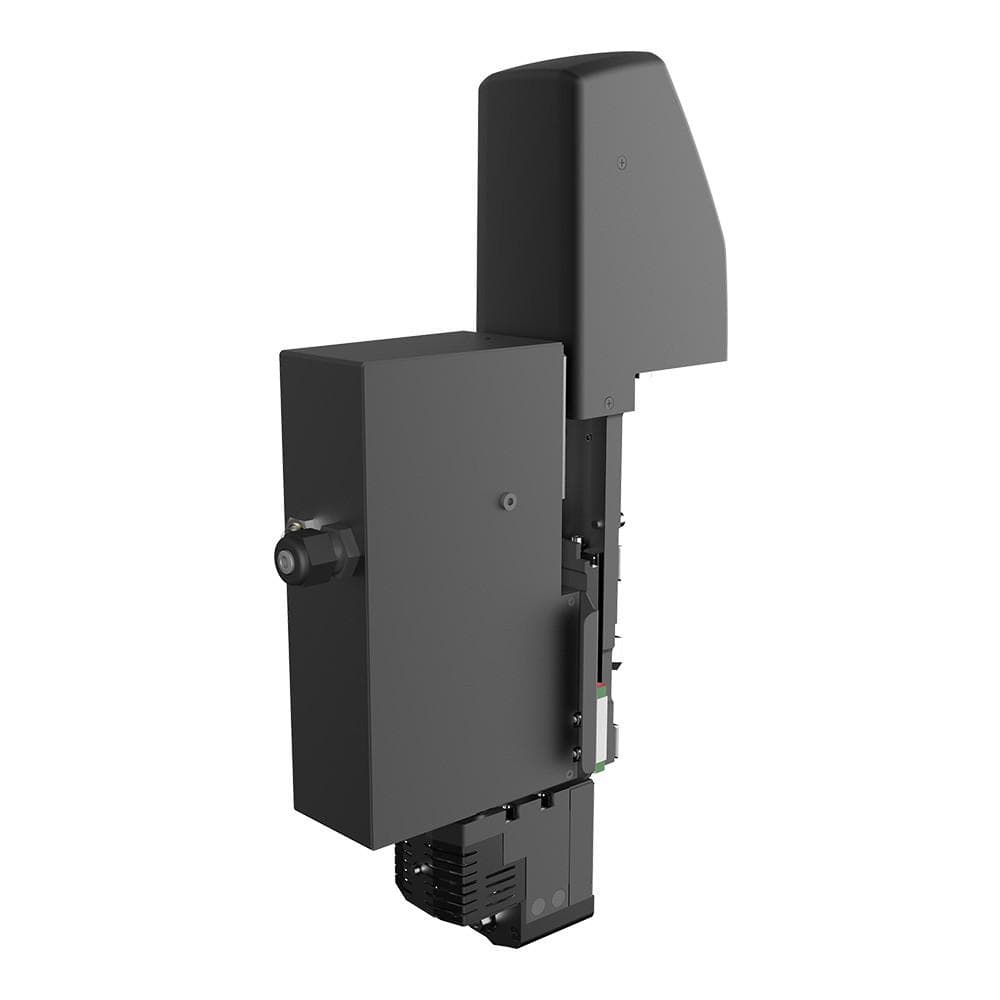

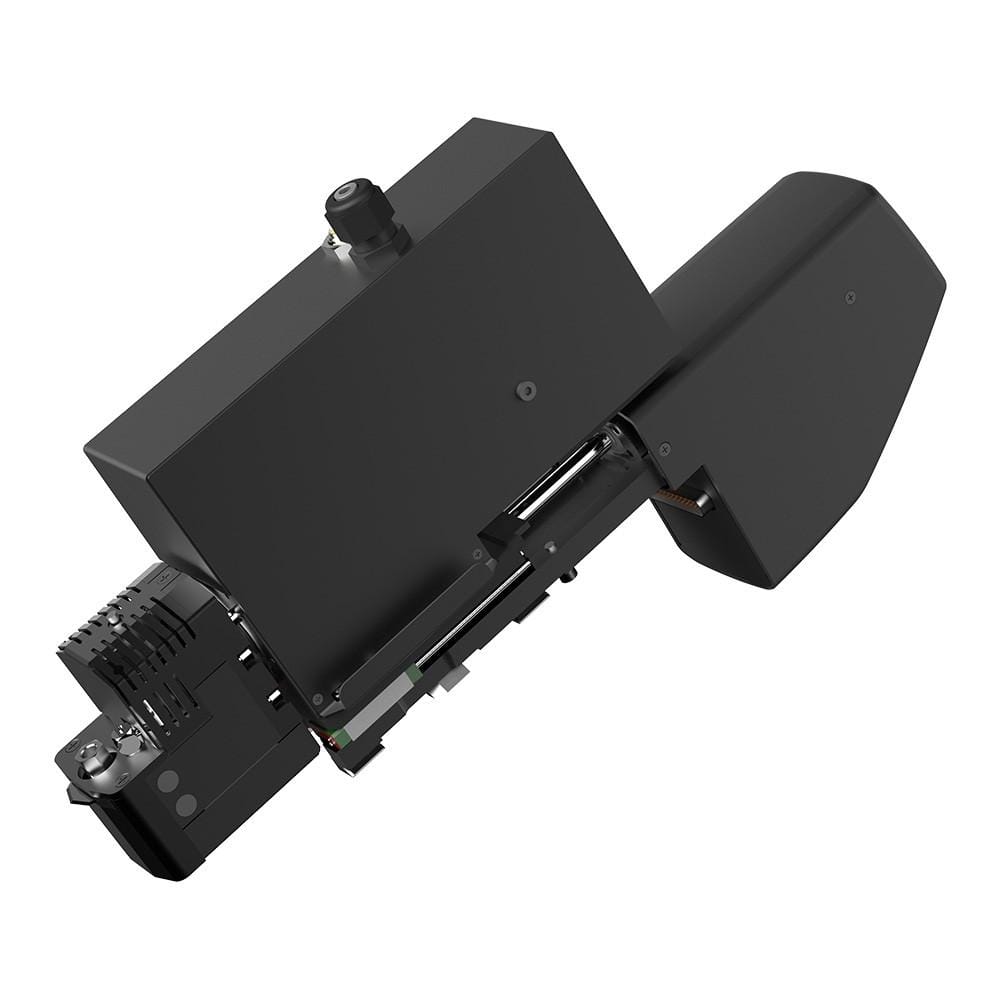

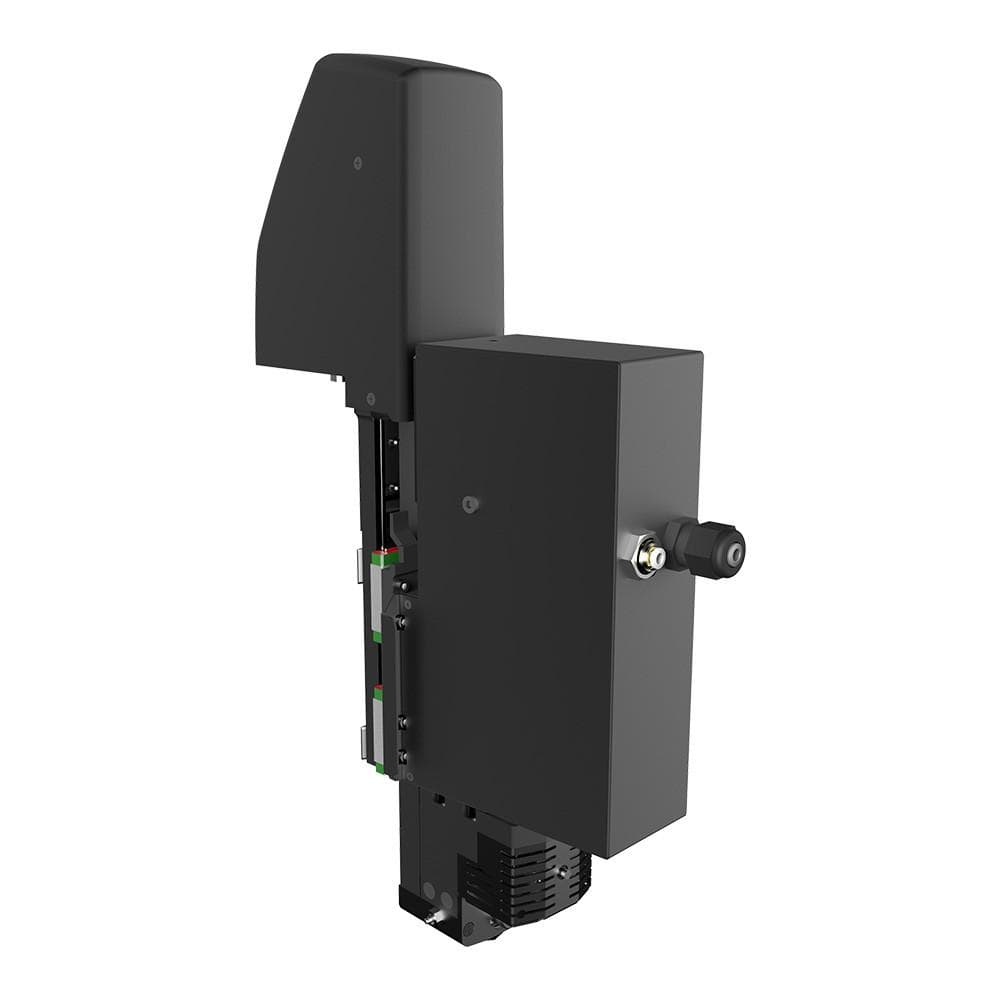

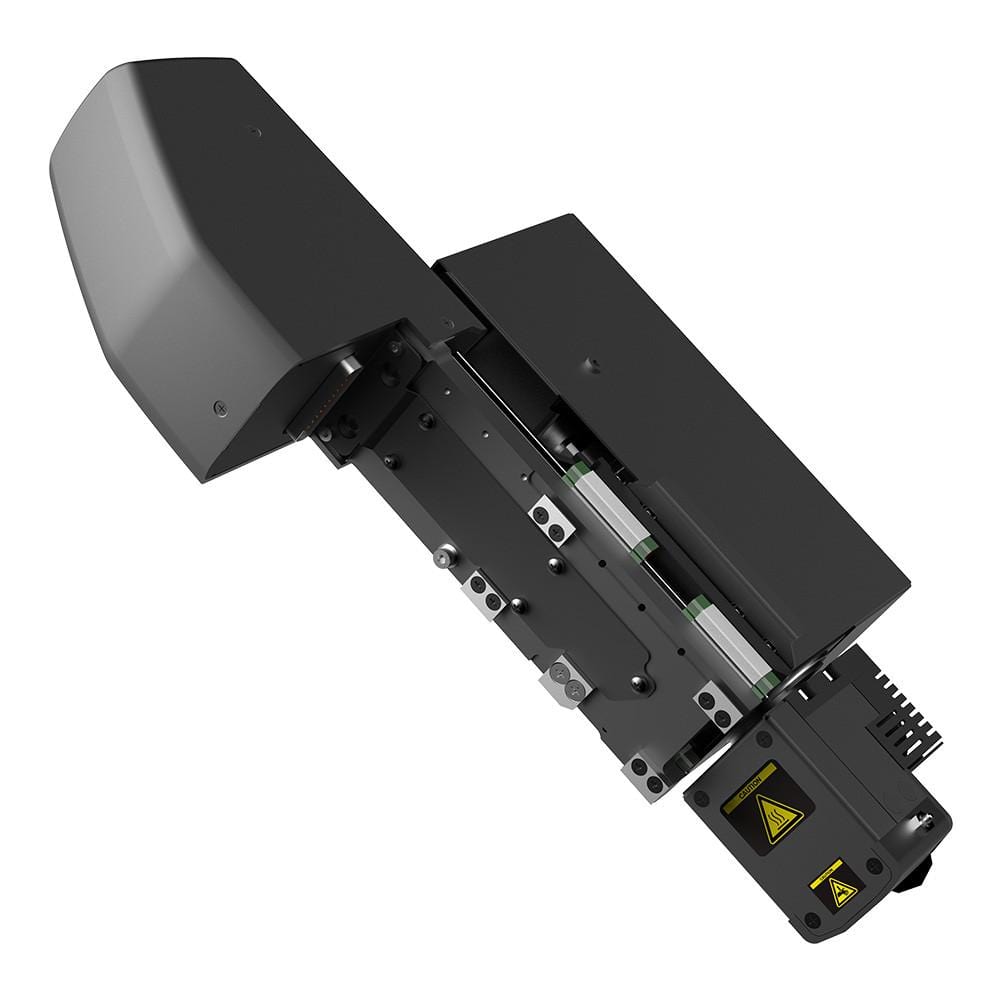

Summa High Torque Rotary Module

Trim your banners with the new High Torque Rotary Module (HT RM), built for Summa's sturdy F Series finishing cutting systems. Compared to the standard rotary module, the HT RM shows one main difference. The rotational torque of the new module is four times higher at lower rotational speed, which makes the HT RM much more powerful.

The higher rotational power enables you to cut tougher and thicker substrates, which makes the HT RM most suitable to cut banner material (PVC coating). It is also ideal to cut porous materials due to the minimal pressure on the substrate. An added perk is that the HT RM is able to cut close(r) to material edges, enabling to reduce waste material to an absolute minimum.

So, if you're looking for a powerful module that offers cutting-edge finishing of your banner material, you can rely on Summa's HT RM!

Includes: 1 x 28mm Decagonal Knife

Specifications

• Fleece
• Felt
• Packaging Foam
• Foam <= 5 mm
• Synthetic Textiles
• Technical Textiles
• PVC Banner Material
• Main Application: Banner Trimming

Compatibility

• 500-9860 Wheel Knife D25: max cutting thickness - 1.5 mm
• 500-9861 Wheel Knife D28: max cutting thickness - 3 mm
• 500-9862 Wheel Knife D32: max cutting thickness - 5 mm
