Description

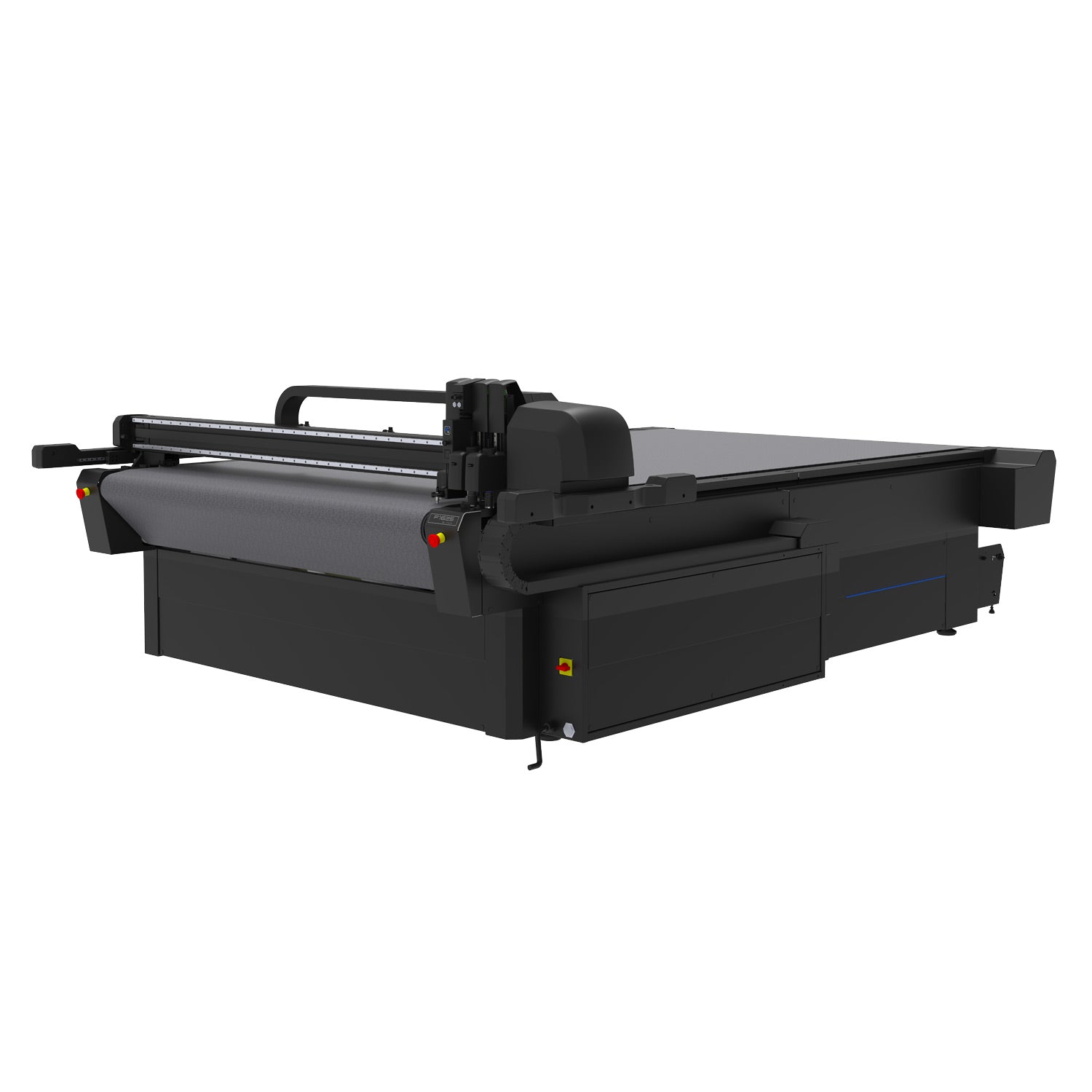

The Summa F1625 Vantage Flatbed Cutter is a versatile digital finishing system built for sign shops, print providers, packaging businesses, and production teams working with both roll media and rigid sheets. Its 63 x 98 in. work zone accommodates full 4 x 8 ft. boards while supporting materials up to 65 in. wide, making it a strong fit for signage, displays, packaging prototypes, decals, banners, textiles, and routed panels.
As part of the new Summa F Series Vantage platform, the F1625 is designed to improve the entire finishing workflow. Enhanced automation helps simplify tool setup, blade recognition, calibration, material measurement, and job changeover. Summa's Automatic Device Calibration system profiles installed tools and helps maintain alignment, blade depth, and cutting accuracy across changing materials and applications.
The Summa F1625 Vantage can carry up to three modules in one workflow, allowing operators to combine cutting, kiss cutting, creasing, routing, and other finishing processes with fewer tool changes. GoProduce Flatbed Edition centralizes job preparation, material profiles, tool settings, Action Sets, and optional barcode automation, helping production teams move efficiently between roll media, sheets, and rigid boards.
Specifications
- 63 x 98 in. work zone accommodates full 4 x 8 ft. boards
- Supports rigid sheets, flexible media, and rolls up to 65 in. wide
- Vantage automation simplifies calibration, tool recognition, setup, and job changeover
- Triple-head configuration supports up to three modules in one production workflow
- Automatic Device Calibration helps maintain tool alignment, blade depth, and cutting accuracy
- Optical media thickness measurement helps configure tool movement for the loaded material
- Eight vacuum zones help secure large sheets and flexible materials across the work area
- Conveyor workflow supports roll-fed materials and jobs longer than the cutting table
- Cutting speeds up to 39 in./sec. with acceleration up to 1 G
- GoProduce Flatbed Edition supports job preparation, material profiles, Action Sets, and tool management
- Optional barcode automation loads the corresponding cut file, material profile, and tool settings
- Modular tooling supports cutting, creasing, routing, textiles, packaging, and specialty applications
Popular Applications
- Rigid Signs and Display Panels
- Full 4 x 8 ft. Board Applications
- Foam Board, Foam PVC, and Corrugated Plastic
- ACM, Acrylic, MDF, and Routed Panels
- Point-of-Purchase Displays
- Packaging Prototypes and Folding Carton
- Corrugated Board and Short-Run Packaging
- Stickers, Decals, and Adhesive Vinyl
- Banners and Flexible Sign Materials
- Reflective and Magnetic Media
- Textiles and Soft Signage
- Foams, Gaskets, and Specialty Materials
| MODEL | Summa F1625 Vantage Flatbed Cutter |
| CUTTING SYSTEM | Modular digital flatbed cutting and finishing system |
| WORK ZONE | 63 x 98 in. / 160 x 250 cm |
| BOARD CAPACITY | Accommodates full 4 x 8 ft. sheets within the cutting work zone |
| MAX MATERIAL WIDTH | Up to 65 in. / 165 cm |
| MAXIMUM SPEED | Up to 39 in./sec. / 1000 mm/sec. |
| MAXIMUM ACCELERATION | Up to 1 G |
| HEAD CONFIGURATION | Triple-head configuration supporting up to three modules simultaneously |
| STANDARD MODULE | Drag Module included with every machine; additional modules and tools depend on the selected configuration |
| AVAILABLE MODULES | Fast+ Module, Core+ Module, Drag Module, Rotary Knife Module, Standard Router Module, and optional 3.7 kW High Frequency Router Module |
| AVAILABLE PROCESSES | Through cutting, kiss cutting, creasing, perforating, oscillating cutting, textile cutting, drawing, and routing, depending on installed modules and tools |
| TOOL CALIBRATION | Automatic Device Calibration with automatic blade and module recognition |
| MATERIAL MEASUREMENT | Optical media thickness sensor |
| VACUUM SYSTEM | Two 1.3 kW vacuum pumps at 50 Hz or two 2 kW vacuum pumps at 60 Hz |
| VACUUM ZONES | 8 zones arranged in four columns and two rows |
| MEDIA HANDLING | Vacuum hold-down, conveyor workflow, roll support, material clamps, and support for sheet or roll-fed production |
| CAMERA SYSTEM | Camera-based registration with optional barcode-driven job identification |
| SOFTWARE | Summa GoProduce Flatbed Edition |
| WORKFLOW FEATURES | Action Sets, Material Manager, tool management, barcode automation, and support for GoConnect and GoData integrations |
| SUPPORTED MATERIALS | Adhesive vinyl, banner material, reflective film, magnetic media, foam board, foam PVC, corrugated plastic, cardboard, folding carton, textiles, acrylic, ACM, MDF, and other compatible substrates |
| MACHINE DIMENSIONS | 97 in. W x 130 in. D x 43 in. H / 247 x 333 x 110 cm |
| POWER REQUIREMENTS | 208 V three-phase with neutral, 60 Hz, maximum 30 A for the standard U.S. configuration. Confirm final electrical requirements with AirMark before ordering. |
| INSTALLATION | Professional installation and operator training are recommended |
| AVAILABLE OPTIONS | Module and tool packages, router systems, roll support, extension tables, and workflow software options are available depending on application requirements |
