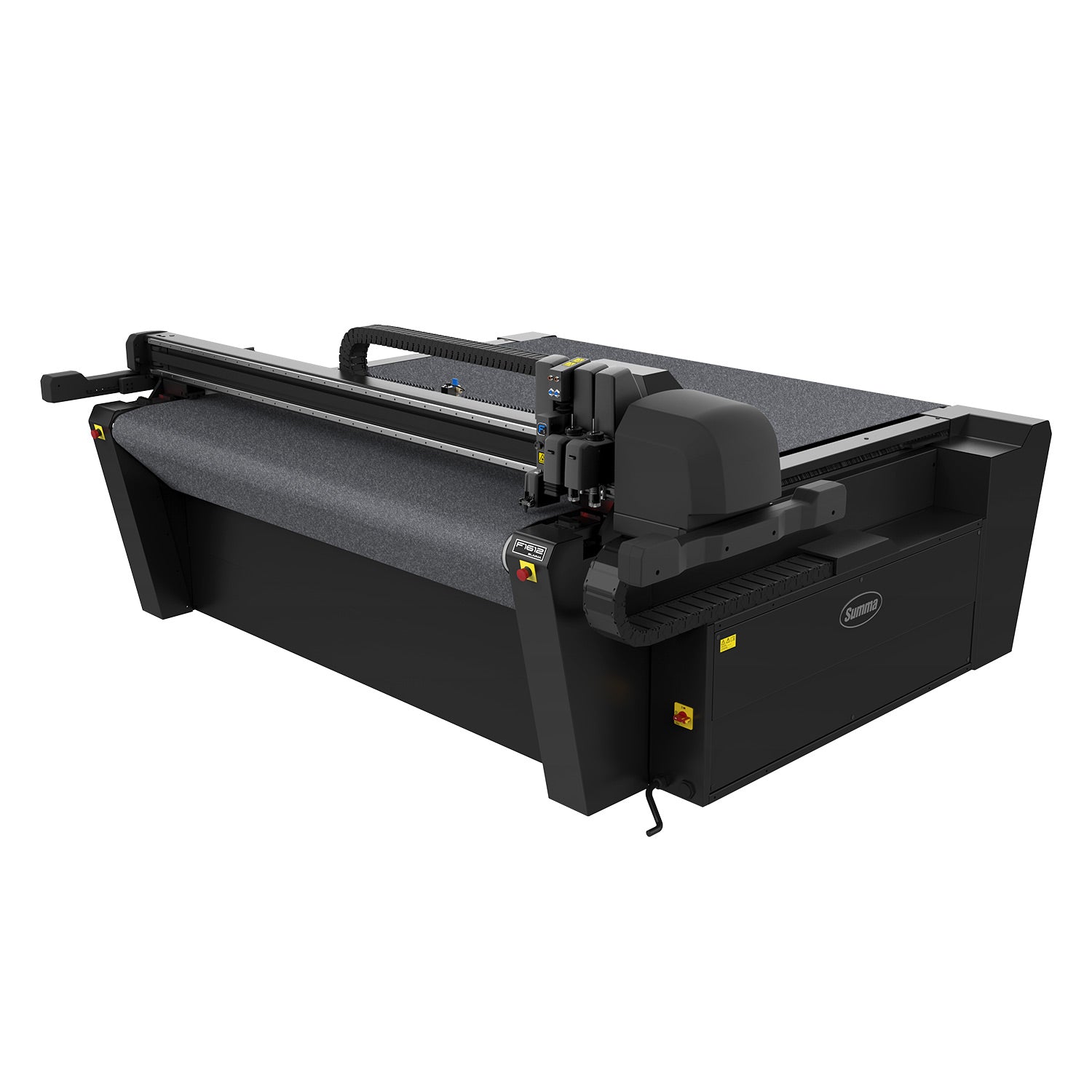

Summa F Series F1612 Vantage Flatbed Cutter

The Summa F1612 Vantage Flatbed Cutter is a compact digital finishing system built for sign shops, print providers, graphics businesses, and production teams that need precise cutting without committing to a larger cutting table. With a 63 x 47 in. work zone and support for materials up to 65 in. wide, the F1612 Vantage is well suited for decals, stickers, adhesive vinyl, banners, reflective materials, magnetic media, foam board, cardboard, and other flexible or light rigid materials.

As part of the new Summa F Series Vantage platform, the F1612 is designed to improve the entire finishing workflow, not just cutting speed. Enhanced automation helps simplify startup, tool calibration, blade recognition, material measurement, job setup, and changeover. Summa's Automatic Device Calibration system profiles installed tools and helps compensate for alignment, blade depth, and normal tool wear, supporting consistent cutting from one job to the next.

The Summa F1612 Vantage can carry up to three modules in a single workflow, helping operators complete cutting, kiss cutting, creasing, routing, and other finishing processes with fewer tool changes. GoProduce Flatbed Edition provides centralized job preparation, material profiles, tool settings, Action Sets, and optional barcode automation, making the F1612 Vantage a flexible and operator-friendly flatbed cutter for growing production environments.

For U.S. businesses, the available single-phase power configuration makes the F1612 Vantage easier to install in many commercial facilities without requiring three-phase electrical service or an additional phase converter. This allows more sign and graphics businesses to add professional flatbed cutting capabilities without a major electrical upgrade.

Specifications

• Compact Summa flatbed cutter for flexible media, sheet materials, and light rigid board applications
• 63 x 47 in. cutting work zone with support for materials up to 65 in. wide
• Single-phase power configuration available for the U.S. market
• Triple-head configuration supports up to three modules in one production workflow
• Automatic Device Calibration helps confirm tool alignment, blade depth, and cutting accuracy
• Automatic blade and module recognition helps reduce setup mistakes and manual calibration
• Optical media thickness measurement helps configure tool movement for the loaded material
• Vacuum hold-down system with four vacuum zones helps keep flexible and sheet materials secure
• Conveyor workflow supports longer sheets and roll-fed materials beyond the table length
• Cutting speeds up to 39 in./sec. with acceleration up to 1 G
• GoProduce Flatbed Edition supports job preparation, material profiles, Action Sets, and tool management
• Optional barcode workflow automatically loads the corresponding cut file, material profile, and tool settings
• Modular design allows the cutting system to expand with additional tools and production applications

Popular Applications

• Stickers and Decals
• Adhesive Vinyl and Printed Vinyl
• Contour Cutting and Kiss Cutting
• Banners and Flexible Sign Materials
• Reflective and Protective Films
• Magnetic Media
• Foam Board and Light Display Board
• Cardboard and Folding Carton
• Corrugated Board and Packaging Prototypes
• Point-of-Purchase Displays
• Labels and Short-Run Graphics
• Textiles and Specialty Materials

Downloads

Summa F Series Vantage Brochure
