Description

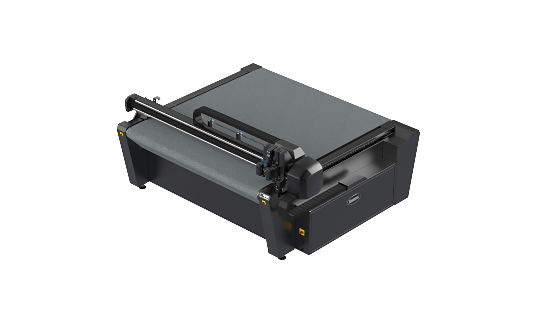

Introducing the most versatile flatbed cutting system ever.
The F Series is a completely new cutting product line based on over a quarter century of plotting manufacturing expertise.
Up to three tools can be inserted at one time into the multi-module tool holder. And changing those tools is quick and easy, thanks to the simple, single-point fastening system. Automatic tool recognition, combined with digital and mechanical depth / pressure control, ensures precision cutting on a vast array of materials.
The base unit comes standard-equipped with an ultra-fast drag knife module, plus Summa's revolutionary OPOS-CAM optical camera marker recognition system for unparalleled contour cutting accuracy.
Multiple material-handling options assure optimal efficiency, whether cutting printed, flexible or rigid substrates. An ever-expanding arsenal of add-ons allows you to custom-tailor the machine to perfectly match a specific workflow.
An all-new Router System capable of milling all of the most common hard boards / thicker substrates has been added, as well as a Pneumatic Oscillating Tool that is so durable and powerful it breezes through many of the most challenging cutting situations.
Specifications
MODEL | Summa F1612 |
CUTTING AREA | 63 in. (160 cm) wide x 47.2 in. (120 cm) long up to 164 ft. (50 m) long in multi panel |
MEDIA WIDTH | Up to 65 in. (165 cm) |
MULTI PANEL* | 1968 in. (5000 cm) *Media clamps and roll-feed and/or conveyor belt system are required |
REPEATABILITY | Within +/- 0.05 mm on plots |
ACCURACY | 0.05 % of move or 0.05 mm, whichever is greater |
SPEED | Up to 39.4 in./sec (1000 mm/sec) |
ACCELERATION | Up to 1 G |
CLEARANCE* | 1.9 in. (5 cm) *Distance between vacuum table and Y-beam. Not taking into account the thickness of a cutting matt or conveyor belt |
MAXIMUM ALLOWED FORCES | Vertical: 200 Newton, Horizontal: 200 Newton |
MAXIMUM TABLE LOAD | 10.2 lb/ft2 (50 kg/m2) |
CONNECTIVITY | USB |
POWER REQUIREMENTS | 3 Phase 208V+N or 3 Phase 230V or 3 Phase 400V+N |
DIMENSIONS | 92.5 x 76.3 x 43.3 in. (235 x 194 x 110 cm) – without roll support |
WEIGHT | 1100 lbs (500 kg) |
OPERATING TEMPERATURE | 59˚ to 95˚F (15˚ to 35˚C) |
STANDARD ACCESSORIES | Drag Knife Module, Conveyor System, Roll-Feed System, Safety Beam System, Pneumatic Pack, wireless controller w/ charger, standard 36˚ blade holder, 1 standard blade, 1 fiber-tip pen, hex screwdriver (4mm), hex screwdriver (2.5mm), USB cable (3 meter), USB extension cable (0.5 meter), media guide flanges (set of 2), CD w/ manuals and drivers |
OPTIONAL ACCESSORIES | Tangential Knife Module, F Series Router System, Electronic Oscillating Tool, Pneumatic Oscillating Tool, Kiss Cutting Tool, Single Edge Cutout Tool, Double Edge Cutout Tool, Heavy Duty Cutout Tool, Creasing Tools, V-Cut Tools, SummaFlex™, SummaFlex Pro™ production software |
WARRANTY (USA) | Two-year parts and labor limited warranty, toll-free technical support |
