Description
Choose Your Printer Configuration
| STANDARD | Continuous or tear-off printing for wide-format labels and multiple-up label production |
| CUTTER | Automatically cuts compatible labels and tag materials after printing |
Select the standard model or cutter configuration that best fits your labeling workflow.

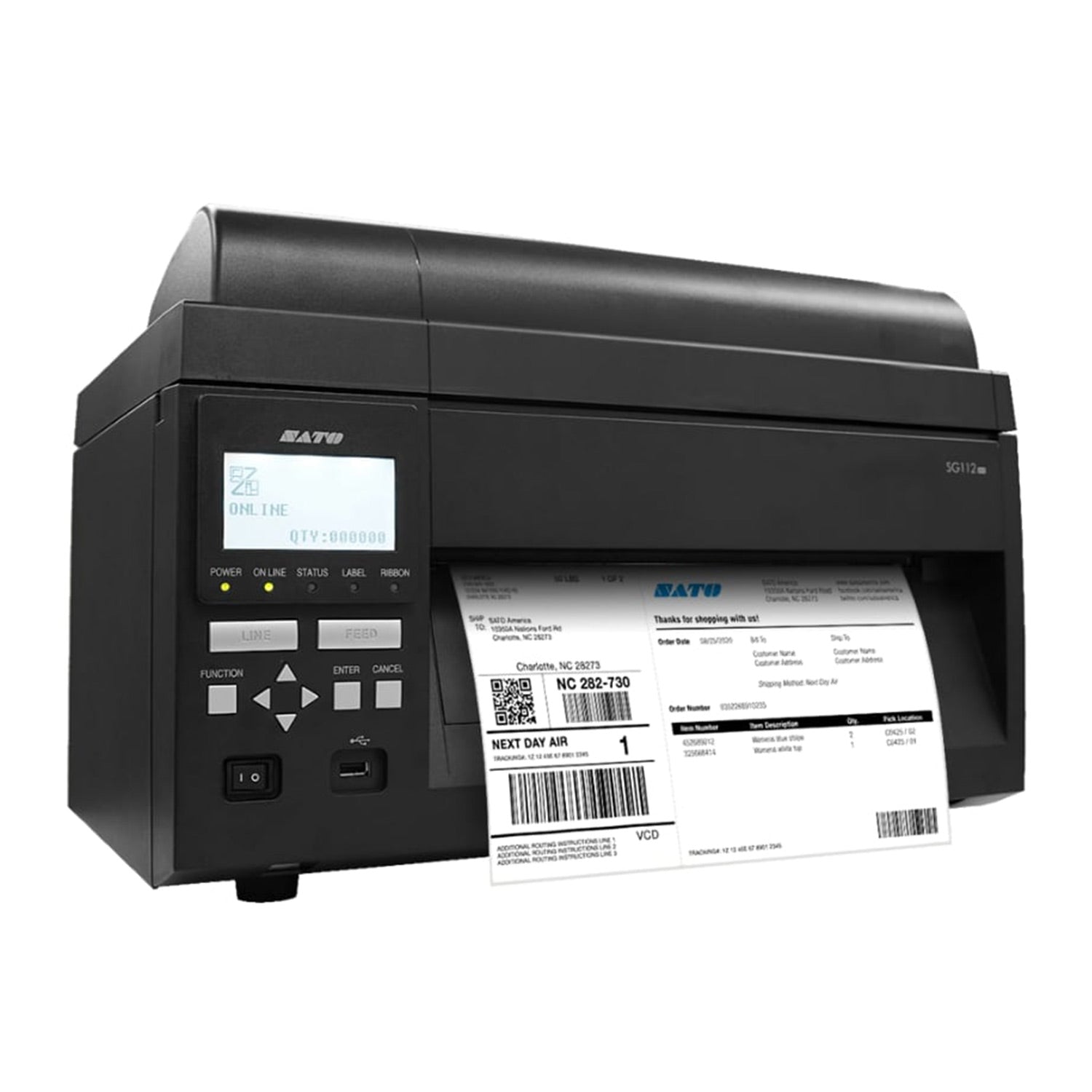

The SATO SG112-ex is a 10.5-inch wide-format industrial label printer built for large barcode labels, chemical and GHS labels, pallet identification, automotive labels, and other applications that require more printing area than a standard industrial printer. Its wide printhead can produce a single large label or multiple smaller labels at the same time without rotating the artwork.
With 305 dpi resolution and print speeds up to 6 in./sec., the SG112-ex delivers clear barcodes, detailed graphics, warning symbols, and small text across labels up to 10.5 in. wide. Direct thermal and thermal-transfer printing provide flexibility for temporary identification as well as durable ribbon-printed labels used in demanding industrial environments.
Automatic media loading, a 3.3-inch LCD display, and standard LAN, USB, serial, parallel, EXT, and SD card connectivity help simplify setup and integration. Choose the standard model for continuous or tear-off production, or the cutter model for automatic label and tag separation.
Specifications
- 10.5-inch wide-format industrial thermal label printer
- 305 dpi resolution for detailed text, barcodes, graphics, and safety symbols
- Print speeds up to 6 in./sec.
- Supports direct thermal and thermal-transfer printing
- Prints one large label or multiple smaller labels simultaneously
- Supports label media up to 11.8 in. wide
- Automatic media loading helps simplify printer setup
- Standard LAN, USB, RS-232C, parallel, EXT, and SD card connectivity
- Available in standard and automatic cutter configurations
- Built for manufacturing, chemical, automotive, logistics, retail, and industrial labeling
Popular Applications
- Chemical and GHS Labels
- Large-Format Barcode Labels
- Pallet and Container Labels
- Automotive and Parts Labels
- Manufacturing and Work-in-Process Labels
- Shipping and Logistics Labels
- Lumber, Steel, and Industrial Identification
- Warning and Compliance Labels
- Multiple-Up Label Printing
- Product and Inventory Identification
| MODEL | SATO SG112-ex Wide-Format Industrial Label Printer |
| PRINTER TYPE | 10.5-inch wide-format industrial thermal label printer |
| PRINT METHOD | Direct thermal and thermal transfer |
| PRINT RESOLUTION | 305 dpi / 12 dots per mm |
| PRINT SPEED | 3, 4, 5, or 6 in./sec. |
| MAXIMUM PRINT WIDTH | 10.5 in. / 266.7 mm |
| MAXIMUM PRINT LENGTH | 16.5 in. / 420 mm |
| PRINT MODES | Continuous, tear-off, and cut-and-print on the cutter model |
| MEDIA TYPES | Roll or fan-fold die-cut labels |
| MEDIA WIDTH | 5.15 to 11.8 in. / 131 to 300 mm |
| MEDIA THICKNESS | 0.0031 to 0.0106 in. / 0.08 to 0.27 mm; cutter-compatible media up to 0.0083 in. / 0.21 mm |
| MAXIMUM ROLL SIZE | 8 in. outer diameter on a 3 in. core |
| MEDIA WIND | Face-in or face-out |
| MEDIA SENSORS | Reflective I-mark sensor and transmissive label-gap sensor |
| RIBBON LENGTH | Up to 984.25 ft. / 300 m |
| RIBBON WIDTH | 5.7 to 10.7 in. / 145 to 273 mm |
| MEMORY | 40 MB Flash ROM and 64 MB SDRAM |
| DISPLAY | 3.3-inch LCD display with adjustable brightness and three-color status LED |
| STANDARD CONNECTIVITY | USB 2.0 Type A and Type B, LAN, RS-232C, IEEE 1284 parallel, EXT interface, and SD card slot |
| BARCODE SUPPORT | Supports common linear and 2D symbologies including Code 39, Code 128, GS1-128, QR Code, PDF417, MaxiCode, and GS1 DataMatrix |
| STANDARD MODEL WEIGHT | Approximately 44.1 lb. / 20 kg, excluding media and ribbon |
| CUTTER MODEL WEIGHT | Approximately 51 lb. / 23.1 kg, excluding media and ribbon |
| PRINTER DIMENSIONS | 18.70 in. W x 12.34 in. D x 12.57 in. H |
| HEIGHT WITH COVER OPEN | 20.30 in. |
| POWER REQUIREMENTS | AC 100-240 V, ±10%, 50/60 Hz |
| OPERATING ENVIRONMENT | 41° to 104° F and 30% to 80% relative humidity, non-condensing |
| AVAILABLE CONFIGURATIONS | Standard model and cutter model |
| AVAILABLE ACCESSORIES | Unwind kit, real-time clock kit, catch tray, feed roller, replacement printhead, and platen roller |
| CONFIGURATION NOTE | Media compatibility, printer weight, and finishing capabilities vary by configuration. Contact AirMark for help selecting the correct model and accessories. |
Downloads
SATO SG112-ex Support and Downloads
Need a Quote or Help Choosing a Label Printer?
Contact our team for more information on SATO SG112-ex pricing, cutter configurations, compatible labels and ribbons, available accessories, or help selecting the right wide-format industrial label printer. Chat with us on our website, call us at (800) 527-7778, or fill out the form below and our team will reach out shortly.
