Description
Choose Your Print Resolution
| 203 DPI | Best for high-speed shipping, pallet, warehouse, barcode, and general-purpose wide-format labels |
| 305 DPI | Provides sharper text, detailed graphics, and improved clarity for smaller or denser barcodes |
Choose Your Printer Configuration
| STANDARD | Continuous or tear-off printing with labels removed manually |
| DISPENSER & REWINDER | Peels and presents each label while rewinding the used backing liner |
| CUTTER | Automatically separates compatible labels or tags after printing |
| WLAN / BLUETOOTH | Adds wireless LAN and Bluetooth connectivity to the selected printer configuration |
Select the print resolution, connectivity, and output configuration that best fits your labeling workflow.

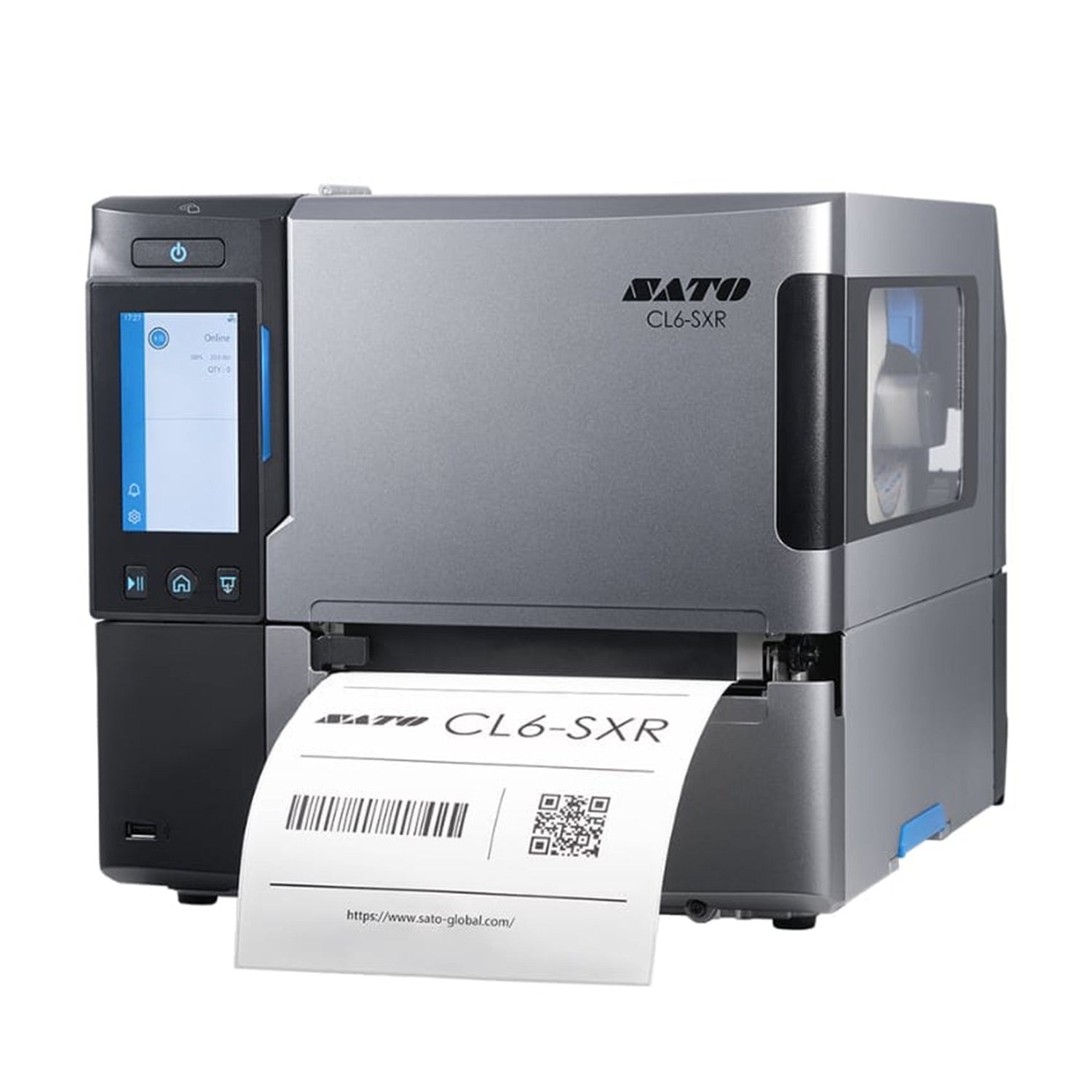

The SATO CL6-SXR is a high-performance 6-inch industrial label printer built for wide-format barcode, shipping, pallet, compliance, warehouse, and product identification labels. Available in 203 or 305 dpi, the CL6-SXR combines a maximum print width of 6.60 in. with print speeds up to 14 in./sec. for demanding manufacturing, logistics, distribution, retail, and industrial environments.
Choose 203 dpi for fast general-purpose labeling or 305 dpi when smaller text, detailed graphics, and dense barcodes require greater clarity. The CL6-SXR supports direct thermal and thermal-transfer printing, providing flexibility for temporary labels as well as durable labels printed with thermal-transfer ribbons.
A 4.3-inch color touchscreen, label preview, intelligent media sensing, label-waste prevention, and remote printer management help simplify daily operation. Standard Ethernet, USB, NFC, RS-232C, and external interfaces are included, with WLAN and Bluetooth models available alongside standard, cutter, and dispenser and rewinder configurations.
Specifications
- 6-inch industrial thermal label printer for wide-format and high-volume production
- Available in 203 and 305 dpi print resolutions
- Print speeds up to 14 in./sec.
- Maximum print width of 6.60 in.
- Supports direct thermal and thermal-transfer printing
- 4.3-inch full-color touchscreen with label preview and operator guidance
- Standard Ethernet, USB, NFC, RS-232C, and external connectivity
- Optional dual-band WLAN and Bluetooth 5.2 connectivity
- Available standard, cutter, and dispenser and rewinder configurations
- SATO Online Services supports remote monitoring and predictive maintenance
Popular Applications
- Wide-Format Barcode Labels
- Shipping and Receiving Labels
- Pallet and Carton Labels
- Warehouse and Inventory Labels
- Manufacturing and Work-in-Process Labels
- Compliance and Regulatory Labels
- Routing and Logistics Labels
- Product and Case Identification
- Asset and Equipment Labels
- Retail and Distribution Labels
| MODEL | SATO CL6-SXR Industrial Label Printer |
| PRINTER TYPE | 6-inch industrial thermal label printer |
| PRINT METHOD | Direct thermal and thermal transfer |
| AVAILABLE RESOLUTIONS | 203 dpi and 305 dpi |
| 203 DPI PRINT SPEED | Up to 14 in./sec. |
| 305 DPI PRINT SPEED | Up to 14 in./sec. |
| MAXIMUM PRINT WIDTH | 6.60 in. / 167.5 mm |
| 203 DPI MAX PRINT LENGTH | 98.42 in. / 2500 mm |
| 305 DPI MAX PRINT LENGTH | 59.05 in. / 1500 mm |
| MEMORY | 8 GB Flash, 2 GB RAM, and 1 GB user-downloadable memory |
| DISPLAY | 4.3-inch full-color touchscreen with customizable interface, label preview, guidance videos, and voice guidance |
| STANDARD CONNECTIVITY | Gigabit Ethernet, USB 2.0 Type A and Type B, NFC, RS-232C, and external interface |
| OPTIONAL WIRELESS CONNECTIVITY | Dual-band WLAN and Bluetooth 5.2 on wireless configurations |
| AVAILABLE CONFIGURATIONS | Standard, cutter, and dispenser and rewinder |
| STANDARD CONFIGURATION | Continuous or tear-off label printing for general-purpose workflows |
| CUTTER CONFIGURATION | Automatically separates compatible labels and tag materials after printing |
| DISPENSER & REWINDER | Peels and presents printed labels while collecting the used backing liner |
| PRINT ACCURACY | Up to ±0.3 mm under specified operating and testing conditions |
| MEDIA SENSING | Advanced media sensing supports accurate label positioning and helps reduce wasted labels during loading |
| PRINTER EMULATIONS | SZPL, SDPL, SIPL, SMPL, SPGL, XML, PDF Direct Print, SATO AEP, and additional supported languages |
| REMOTE MANAGEMENT | SATO Online Services, advanced remote desktop functionality, and SATO All-In-One Tool |
| CONSTRUCTION | Industrial design with an aluminum die-cast frame for stable, continuous operation |
| POPULAR INDUSTRIES | Manufacturing, transportation and logistics, warehousing, wholesale distribution, retail, healthcare, government, and utilities |
| CONFIGURATION NOTE | Print length, connectivity, media handling, and finishing capabilities vary by selected resolution and configuration. Contact AirMark for help choosing the correct model. |
Downloads
SATO CL6-SXR Support and Downloads
Need a Quote or Help Choosing a Label Printer?
Contact our team for more information on SATO CL6-SXR pricing, print resolutions, available configurations, labels, ribbons, connectivity, or help selecting the right industrial label printer. Chat with us on our website, call us at (800) 527-7778, or fill out the form below and our team will reach out shortly.
