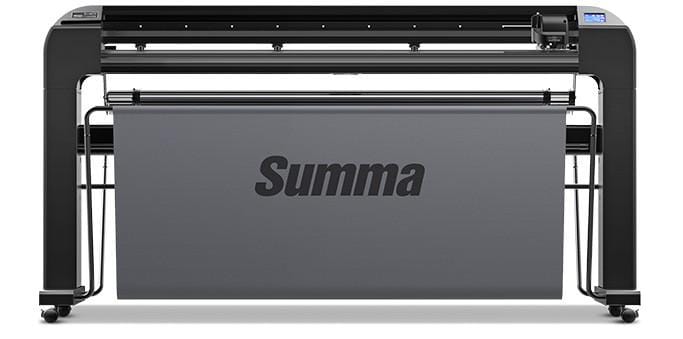

Summa S2 T140 54" Vinyl Cutter

Save $3,110.00
SummaSKU: S2T140
No reviews

Price:
Sale price$7,280.00 Regular price$10,390.00

Description

Thanks to Summa's TrueTangential™ cutting head, S2™ T Series vinyl cutters deliver the cutting precision of a flatbed while providing the ease and speed of a roll-fed cutter.

When it comes to cut-quality, nothing can emulate genuine tangential cutting. Leveraging advanced, computer-controlled blade rotation and up to 600 grams of cutting force, Summa S2™ T Series simply cuts better and deeper than any other cutter in its class. Graphics weed easier. Thick materials slice like butter. Intricate designs cut with pinpoint accuracy.

By combining the world's most sophisticated cutting technology with legendary Summa tracking, S2 T Series vinyl cutters are truly in a class by themselves. Three high-power digital servomotors drive even the most demanding materials with unsurpassed performance. Summa's patented MicroSprocket™ drive drum technology provides precision media handling and remarkable repeatability from start to finish on every job.

Despite all the state-of-the-art features, S2 T Series cutters remain remarkably easy to use. A vibrant, full-color LCD touch-screen featuring an upgraded graphic user interface and intuitively reorganized menu system allows the user to conveniently control every function and parameter.

Spot-on precision, long-term durability and cutting-edge features have become hallmarks of Summa S2 cutters – with the T Series now becoming the latest in the line to offer all that plus so much more.

Count on this next-generation contour cutting machine to greatly enhance workflow productivity when cutting printed graphics, signs, labels, vehicle wraps and more. When paired with computer-controlled blade rotation, Summa S Class T Series sets the standard by which all other vinyl cutters are measured.


MODEL Summa S2 T140
CUT TYPE True Tangential with Drag Knife Cutting Mode Capability
CUT WIDTHS 53.1-inch (135 cm) (Extended Mode: width of the material)
CUT SPEED All S2 models cut at speeds up to 56 inches (1414 mm) per second diagonal
AXIAL ACCELERATION Up to 4 G
MAXIMUM ACCELERATION Up to 5.5 G diagonal
REPEATABILITY Within ± 0.004 in. (0.1 mm) on plots up to 40 ft. (12 m) long
TRACKING 164 ft. (50 m) long
CUT FORCE 0-600 grams of down-force, in 5 gram increments
DISPLAY LANGUAGES English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese
CONNECTIVITY USB; Ethernet
POWER REQUIREMENTS AC 100V to 240V ±10% 48-62Hz, 85 VA maximum
DIMENSIONS 73.6 (W) x 26.8 (D) x 43.7 (H) in. 225 (W) x 68 (D) x 111 (H) cm
SHIPPING WEIGHT 214 lbs (98 kg)
OPERATING TEMPERATURE 59˚ to 95˚F (15˚ to 35˚C)
STANDARD ACCESSORIES WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Blade Holder, Standard Nose Piece, 2 Standard 36° Tangential Blades, Thick Material Nose Piece, 1 Thick 60° Blade, Tangential Drag Holder, 1 Standard 36° Drag Blade, Pouncing Pin and Holder, T Pen holder, 1 Ball point pen, Pouncing and Pen Nose Piece, 2 Cut-off Razor Blades, Blade insertion tool, Stand and Basket.
OPTIONAL ACCESSORIES Motorized Take-Up Roller, Media Rack
WARRANTY (USA) Two-year parts and labor limited warranty, toll-free technical support

Downloads

Summa S One & S2 Vinyl Cutter Brochure
