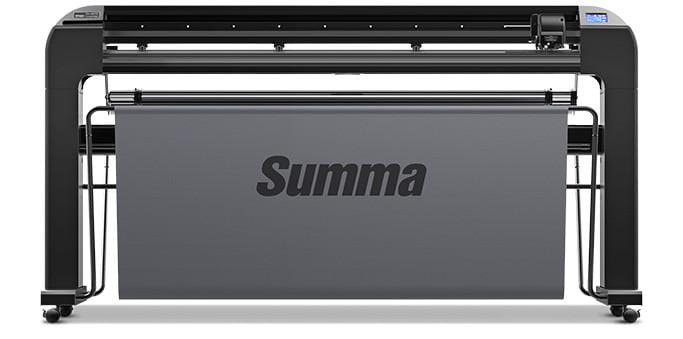

Summa S2 D140 54" Vinyl Cutter
Summa S2™ D Series vinyl cutters combine the highest quality engineering with the most advanced cutting technology to deliver the longest contour cutting accuracy for printed graphics.
With the constant evolution of sign-making, you need equipment that is both flexible and durable, now more than ever.
Summa S Class 2 cutters are built on a foundation of rock-solid reliability and offer features to handle virtually anything you throw their way. Whether cutting vinyl, digital die-cutting, plotting on paper or beyond, Summa S2™ D Series is a do-it-all dynamo with the resilience to perform day in and day out.
Three powerful digital servomotors, combined with the next generation of Summa's acclaimed optical positioning alignment system, OPOS-X™, allow for unmatched accuracy over long job runs - out pacing any other contour cutter on the planet.
The lightning-fast internal processor operates seven times faster than ever before – while the touch-sensitive color LCD control panel and intuitively redesigned user interface allows the operator to effortlessly adjust any parameter of the S2. Plus, with Summa's new FlashCut™ feature, cut files can be stored on a USB memory drive and retrieved instantly via the S2's interface. Frequently processed jobs can be accessed directly from the cutter without the use of a PC.
Another new S2 innovation is the addition of Ethernet connectivity for faster communication and data transmission speeds. Multiple computers can now control one unit across a network, or a crossover cable can be used for direct connection.
Designed specifically for high-volume vinyl and digital print shop environments, Summa S Class cutters have a long-established reputation for reliability, innovation and outstanding performance – all with tracking accuracy that is second to none. When tight deadlines loom and your jobs require hassle-free, perfect cuts, the S2 D Series truly shines.
|MODEL||Summa S2 D140|
|CUT TYPE||Drag knife with TurboCut and Tangential Emulation Modes|
|CUT WIDTHS||53.1-inch (135 cm)|
|CUT SPEED||All S2 models cut at speeds up to 56 inches (1414 mm) per second diagonal|
|AXIAL ACCELERATION||Up to 4 G|
|MAXIMUM ACCELERATION||Up to 5.5 G diagonal|
|REPEATABILITY||Within ± 0.004 in. (0.1 mm) on plots up to 40 ft. (12 m) long|
|TRACKING||164 ft. (50 m) long|
|CUT FORCE||0-400 grams of down-force, in 5 gram increments|
|DISPLAY LANGUAGES||English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese|
|POWER REQUIREMENTS||AC 100V to 240V ±10% 48-62Hz, 85 VA maximum|
|DIMENSIONS||79.6 (W) x 26.8 (D) x 43.7 (H) in. 202 (W) x 68 (D) x 111 (H) cm|
|SHIPPING WEIGHT||214 lbs (98 kg)|
|OPERATING TEMPERATURE||59˚ to 95˚F (15˚ to 35˚C)|
|STANDARD ACCESSORIES||WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades, Pouncing Pin and Holder, Stand and Basket.|
|OPTIONAL ACCESSORIES||Motorized Take-Up Roller, Media Rack|
|WARRANTY (USA)||Three-year parts and labor limited warranty, toll-free technical support|
