Description

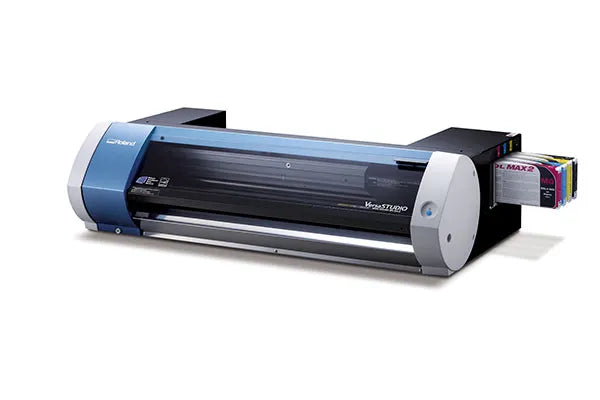

The BN-20A packs everything into one, powerful, profit-producing package. This model offers the same benefits as the BN-20, just without the added option of metallic and white inks. The BN-20A is an incredibly versatile print device that is perfect for creating t-shirt graphics, poster prints, stickers and decals - all from the comfort of your desktop.
Features
- Compact 20-inch inkjet with integrated printing and contour cutting
- A versatile machine for printing t-shirt graphics, decals, stickers, signs, posters and more
- A simplified media feed system automatically aligns roll media for printing
- Legendary Roland reliability for continuous, economical production
Applications
- Apparel
- Custom Labels
- Decals
- Window Signs and Graphics
MODEL | BN-20A |
PRINTING METHOD/CUTTING METHOD | Piezoelectric inkjet / Grit roller feed |
ACCEPTABLE MEDIA WIDTHS | 5.9 to 20.3 in. (150 to 515 mm) |
ACCEPTABLE MEDIA THICKNESS | Printing: Maximum 39 mil (1.0 mm) with liner, Cutting: Maximum 16 mil (.4 mm) with liner |
ACCEPTABLE MEDIA ROLL WEIGHT | Maximum 13.2 lbs (6 kg) |
ACCEPTABLE MEDIA ROLL OUTER DIAMETER | Maximum 5.9 in (150 mm) |
ACCEPTABLE MEDIA CORE DIAMETER | 2 in (50.8 mm)or 3 in (76.2 mm) cores |
PRINTING/CUTTING WIDTH*1 | Maximum 18.9 in (480 mm) |
INK CARTRIDGE TYPE | Roland ECO-SOL MAX2 |
INK CARTRIDGE COLORS | 4 Color - CMMYK (Cyan, Magenta, Yellow, Black) |
PRINTING RESOLUTION | Max 1440 dpi |
CUTTING BLADE TYPE | Roland CAMM-1 series cutter blade |
CUTTING SPEED | 0.4 (10 mm/s) to 5.9 in/s (150 mm/s) |
CUTTING BLADE FORCE | 30 to 300gf |
CONNECTIVITY | USB 2.0 |
POWER CONSUMPTION | During Operation: Approx. 90 W, Sleep Mode: Approx. 5.5 W |
ACOUSTIC NOISE LEVEL | During Operation: 62 dB (A) or less, During Standby: 42 dB (A) or less |
DIMENSIONS/WEIGHT | 39.2" W x 23" D x 11.5" H (995 W x 585 D x 291 H mm), 79.4 lbs (35 kg) |
OPERATING ENVIRONMENT | Power on: Temperature: 68o - 90o F (20 to 32o C), humidity: 35 - 80% RH (non condensing), Power off: Temperature: 41o - 104o F (5 to 40o C), humidity: 20 - 80% RH (non condensing) |
INCLUDED ITEMS | Power cord, USB cable, blade, blade holder, Rolandsoftware Package9, Software RIP (VersaWorks), User's Manual, etc |
Downloads
Roland VersaStudio BN-20 Printer Cutter Brochure
