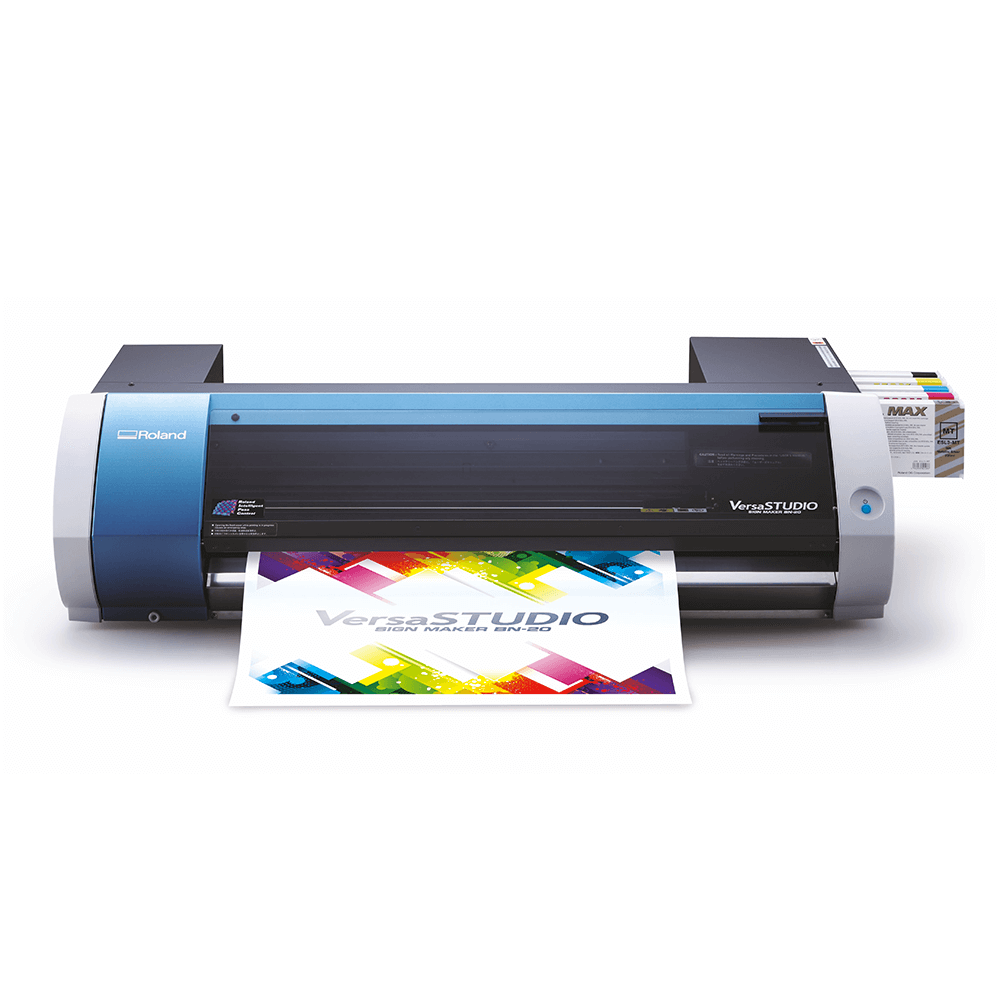

Roland VersaStudio BN-20 20" Desktop Printer Cutter

The BN-20 packs everything into one, powerful, profit-producing package. With award-winning eco-solvent inks including metallic and white options, a range of material compatibility and integrated contour cutting, the BN-20 is easily the most versatile print device in its class. The BN-20 is perfect for creating t-shirt graphics, poster prints, stickers and decals – all from the comfort of your desktop.

Roland VersaStudio BN-20 20-inch Printer Cutter

Features at a glance:

  • Compact 20-inch inkjet with integrated printing and contour cutting
  • A versatile machine for printing t-shirt graphics, decals, stickers, signs, posters and more
  • A simplified media feed system automatically aligns roll media for printing
  • Ink options include CMMYK, CMYK+White and CMYK+Metallic Silver
  • Legendary Roland reliability for continuous, economical production

Popular Applications:

  • Apparel
  • Custom Labels
  • Decals
  • Window Signs and Graphics

Roland VersaStudio BN-20 Printer Cutter Overview



Specifications

MODEL BN-20
PRINTING METHOD/CUTTING METHOD Piezoelectric inkjet / Grit roller feed
ACCEPTABLE MEDIA WIDTHS 5.9 to 20.3 in. (150 to 515 mm)
ACCEPTABLE MEDIA THICKNESS Printing: Maximum 39 mil (1.0 mm) with liner, Cutting: Maximum 16 mil (.4 mm) with liner
ACCEPTABLE MEDIA ROLL WEIGHT Maximum 13.2 lbs (6 kg)
ACCEPTABLE MEDIA ROLL OUTER DIAMETER Maximum 5.9 in (150 mm)
ACCEPTABLE MEDIA CORE DIAMETER 2 in (50.8 mm)or 3 in (76.2 mm) cores
PRINTING/CUTTING WIDTH*1 Maximum 18.9 in (480 mm)
INK CARTRIDGE TYPE Roland ECO-SOL MAX or FPG Aqueous, 220 ml only
INK CARTRIDGE COLORS 5 Color – CMYK+Mt (Cyan, Magenta, Yellow, Black and Metallic Silver) or CMYK+Wh (Cyan, Magenta, Yellow, Black, and White), 4 Color - CMMYK (Cyan, Magenta, Yellow, Black)
PRINTING RESOLUTION Max 1440 dpi
CUTTING BLADE TYPE Roland CAMM-1 series cutter blade
CUTTING SPEED 0.4 (10 mm/s) to 5.9 in/s (150 mm/s)
CUTTING BLADE FORCE 30 to 300gf
CONNECTIVITY USB 2.0
POWER CONSUMPTION During Operation: Approx. 90 W, Sleep Mode: Approx. 5.5 W
ACOUSTIC NOISE LEVEL During Operation: 62 dB (A) or less, During Standby: 42 dB (A) or less
DIMENSIONS/WEIGHT 39.2" W x 23" D x 11.5" H (995 W x 585 D x 291 H mm), 79.4 lbs (35 kg)
OPERATING ENVIRONMENT Power on: Temperature: 68o - 90o F (20 to 32o C), humidity: 35 - 80% RH (non condensing), Power off: Temperature: 41o - 104o F (5 to 40o C), humidity: 20 - 80% RH (non condensing)
INCLUDED ITEMS Power cord, USB cable, blade, blade holder, Rolandsoftware Package9, Software RIP (VersaWorks), User's Manual, etc


Notes

*1 The length of printing or cutting is subject to the limitations of the program.
