Description

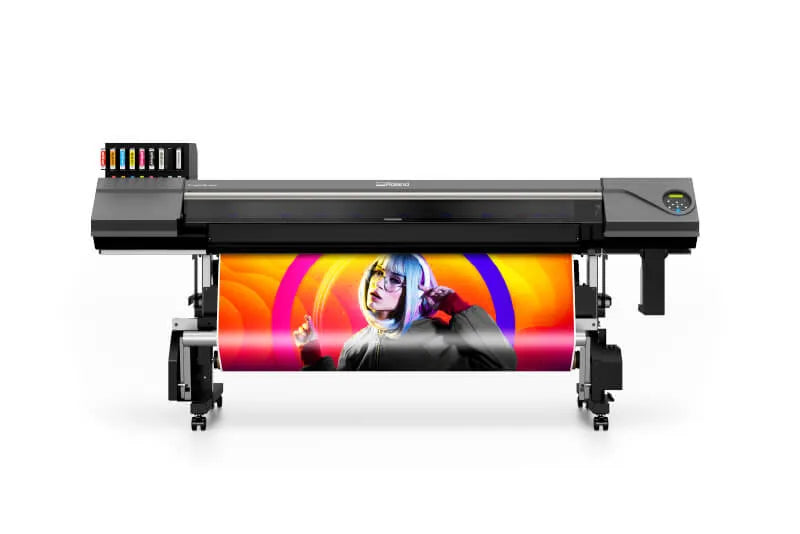

Combining the flexibility of print and cut, the benefits of UV-LED printing and TrueVIS heritage, the MG series adds a new dimension to graphics printing. High-definition output, specialty printing for textures and effects, broad media compatibility combined with user-friendly features makes the MG the ultimate in professional UV print and cut.
Specifications
- ECO-UV inks and premium UV print technology make the MG ideal for branching into professional UV print and cut
- High-quality components, time-saving RIP features and simple media handling make the MG perfect for printing short runs, long runs, print/cut, and so much more
- Easy-to-operate control panel
- Optional take-up unit enables unattended printing
- Optional extension table lets users print onto semi-rigid card stock
- Available ink configurations to meet your customers' needs—from brand accurate colors to high-end, premium gloss and texture effects
- Combine Orange and Red inks to push the color boundaries of digital printing
- High opacity white ink formulated to produce high-quality window graphics with economical ink usage
Popular Applications
- Backlit Graphics
- Window Graphics
- Stickers and Labels
- Packaging Prototypes
- Signange
- POP and Displays
- Specialized Art Prints
MODEL | MG-300 |
PRINTING TECHNOLOGY | Piezo ink-jet method |
ACCEPTABLE MEDIA WIDTHS | 7.2 to 30 in. (182 to 762 mm) |
ACCEPTABLE MEDIA THICKNESS | Maximum 39.3 mil (1.0 mm) with liner, for printing. Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting |
ACCEPTABLE MEDIA ROLL OUTER DIAMETER | Maximum 8.2 in. (210 mm) |
ACCEPTABLE MEDIA ROLL WEIGHT | Maximum 55 lb. (25 kg) |
ACCEPTABLE MEDIA CORE DIAMETER | 3 in. (76.2 mm) or 2 in. (50.8 mm) |
PRINTING/CUTTING WIDTH*1 | Maximum 28.9 in. (736 mm) |
INK TYPE |
ECO-UV (EUV5) 220 ml cartridge (white) ECO-UVS 220 ml cartridge (cyan, magenta, yellow, black, white) ECO-UV (EUV5) 500 ml cartridge (cyan, magenta, yellow, black, red, orange, gloss, primer) |
INK COLORS |
Eight colors (cyan, magenta, yellow, black, red, orange, white, gloss) Eight colors (cyan, magenta, yellow, black, red, orange, white) Seven colors(cyan, magenta, yellow, black, red, orange, white) and primer Seven colors(cyan, magenta, yellow, black, red, white, gloss) and primer Six colors(cyan, magenta, yellow, black, white, gloss) and primer Six colors(cyan, magenta, yellow, black, white, gloss) Four colors(cyan, magenta, yellow, black) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Or and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Or and Gl) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Pr and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Pr and Gl) |
INK CURING UNIT | Built-in UV-LED lamp |
PRINTING RESOLUTION | Maximum 1440 x 1440 dpi |
PRINTING SPEEDS | 150 sqft/hr at 720 x 720 dpi |
CUTTING SPEED | 10 to 300 mm/s (0.39 to 11.8 in/s) |
CUTTING BLADE FORCE*2 | 30 to 500 gf |
CUTTING BLADE OFFSET | 0 to 0.059 in (0 to 1.5 mm) |
CONNECTIVITY | Ethernet (100BASE-TX/1000BASE-T, automatic switching) |
POWER CONSUMPTION | During Operation: 240 W, During Sleep Mode: 40 W |
ACOUSTIC NOISE LEVEL | During Operation: 63 dB (A) or less, During Standby: 53 dB (A) or less |
DIMENSIONS/WEIGHT | 77[W] x 31[D] x 52[H] in 1945[W] x 781[D] x 1316[H]mm, 276lb (125kg) |
OPERATING ENVIRONMENT | Power on: Temperature: 59 to 89.6 °F (15 to 32 °C), fumidity: 20 to 80 %RH (no condensation), Power off: Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation) |
Notes
*1 The length of printing or cutting is subject to the limitations of the program.
*2 500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
Downloads
Roland TrueVIS MG-300 30-Inch Printer Cutter Data Sheet
