Front-End is a finishing module with Post Processor, that can be seamlessly integrated into existing workflows. It also offers a wide selection of import and export filters, and a wide range of tools for milling, engraving, cutting and lasering.

Multi-Head flatbed cutter machines like Zünd, Wild, Summa F Series, Aristo, and more, can be controlled directly from AutoCAD, CorelDRAW, Illustrator, InDesign, or Inkscape via OptiScout Front-End.

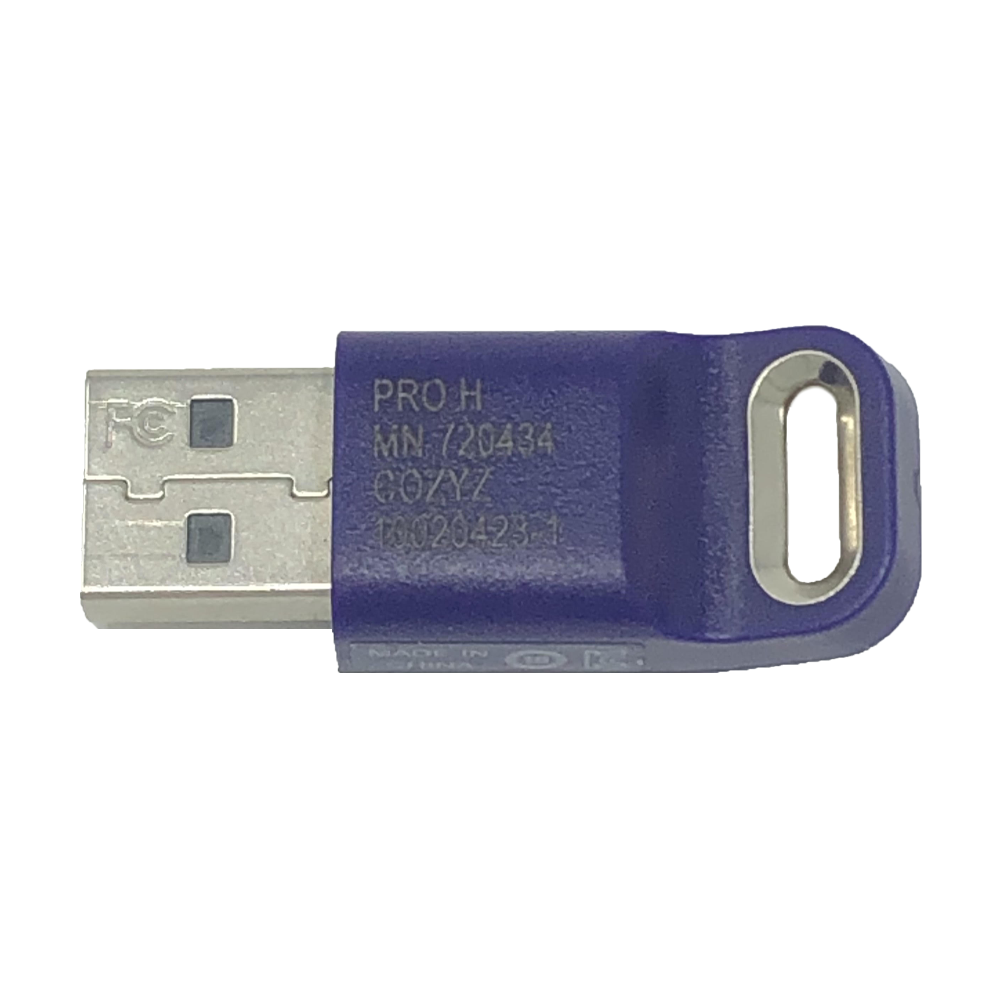

Select from OptiScout Front End 8, an additional license for Front End 8, the replacement OptiScout Dongle, OptiScout Front End software upgrade from version 7 to 8, or the OptiScout software upgrade from version 6 to 8.

Specifications

• Import filter: DXF, EPS, PDF, PLT, …
• Node editing tool for editing of vector data
• Make ready-to-cut of the object to be processed with tool-offset compensation
• Creation of start / end tool paths
• Automatic duplication of cut objects on a given working area
• Simulation of output on the screen to check the optimization
• Post processor activates and controls individually adapted to the selected devices
• Controls several devices at the same time
• Import plug-ins
• Wide variety of import/export filters
• Customizable drivers
• Multi-tool head support
• Workflow Manager with Macro Editor
• All applications which need to cut, die cut, laser or mill
• Zünd and Wild flatbed plotters with/without mill option
• Multifunctional flatbed machines with customized tool heads
• All HPGL and G-Code capable machines

Compatibility

• Computer with min. 2 GB of memory (RAM)
• Minimum graphic resolution: 1280 x 1024 pixels
• Microsoft Windows 7 / 8 / 10
