Description

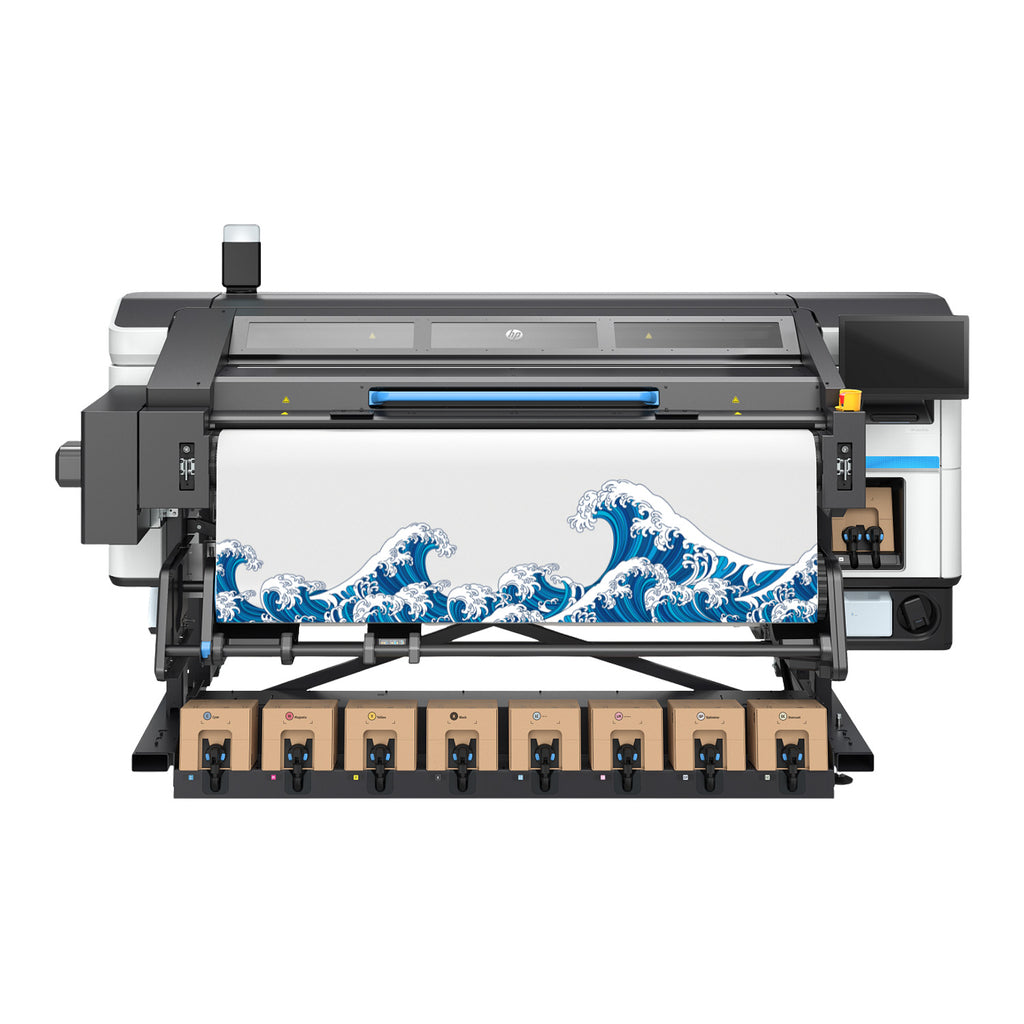

The HP Latex R530 is a compact all-in-one rigid and flexible HP Latex printer built for sign shops, print providers, and graphics businesses that want to expand into direct-to-board printing without taking on a large flatbed footprint. Designed for both rigid substrates and roll-to-roll media, the R530 helps shops produce signs, retail displays, boards, banners, vehicle graphics, window graphics, wall graphics, and other high-value applications from one versatile printer.
With HP’s High Control Belt System, the Latex R530 delivers reliable direct printing on rigid materials up to 64 inches wide and up to 2 inches thick. Its compact hybrid design, single-phase power, intuitive touchscreen, spindle-less roll printing, and fast transitions between rigid and flexible media make it a practical production upgrade for shops that need more application flexibility without adding unnecessary complexity.
The HP Latex R530 uses water-based HP Latex Inks with 3-liter ink cartridges for colors and white, helping produce vibrant color, smooth gradients, solid fills, and consistent results across a wide range of media. HP Latex white ink, automatic recirculation, remote production tools through HP PrintOS Production Hub, and odorless UL ECOLOGO®-certified inks make the R530 a strong fit for shops looking to grow rigid and flexible print production with a cleaner, more efficient workflow.
Specifications
- Compact all-in-one HP Latex printer for rigid and flexible media applications
- Prints on rigid boards up to 64 in. (1.6 m) wide and up to 2 in. (5 cm) thick
- Indoor print speeds up to 258 ft²/hr (24 m²/hr)
- 3-liter ink cartridges for colors and white ink
- Single roll media support up to 121 lb. (55 kg)
- HP High Control Belt System for profitable direct-to-rigid printing
- Single-phase power, intuitive touchscreen operation, and easy rigid-to-flexible workflow transitions
- Remote production control with HP PrintOS Production Hub
Popular Applications
- POP Retail Graphics and Displays
- Rigid Signs and Exterior Signage
- Cabinet Light Boxes
- Banners and Roll-to-Roll Graphics
- Vehicle Wraps and Fleet Graphics
- Window, Wall, and Floor Graphics
| MODEL | HP Latex R530 Printer |
| PRINT TECHNOLOGY | HP Latex Printing Technology |
| MEDIA TYPES | Rigid boards and flexible roll media |
| MAX RIGID MEDIA WIDTH | Up to 64 in. (1.6 m) |
| MAX MEDIA THICKNESS | Up to 2 in. (5 cm) |
| PRINT SPEED | Up to 258 ft²/hr (24 m²/hr) indoor |
| INK TYPE | Water-based HP Latex Inks, including white ink |
| INK CARTRIDGES | 3-liter ink cartridges for colors and white |
| ROLL MEDIA SUPPORT | Single roll up to 121 lb. (55 kg) |
| RIGID MEDIA SYSTEM | HP High Control Belt System for direct-to-rigid printing |
| POWER REQUIREMENTS | Single-phase power |
| WORKFLOW SOFTWARE | HP PrintOS Production Hub |
| OPTIONAL ACCESSORIES | HP Latex R Series 64-in Extension Tables and HP Latex R530 Lateral Pinch Rollers Kit |
| PRINTER DIMENSIONS | 103.5 in. W x 68.1 in. D without tables / 126 in. D with tables x 60.9 in. H |
| PRINTER WEIGHT | 1,455 lb. without tables |
| SHIPPING DIMENSIONS | 115.4 in. W x 87.6 in. D x 69.1 in. H |
| SHIPPING WEIGHT | 2,769 lb. |
| INCLUDED ITEMS | HP Latex R530 Printer with standard input and output tables, delivery, installation, training and ramp up, roll-to-roll printing system, white system, multi-sheet pin, 1 set of printheads, maintenance cartridge, 2 ink collection units, power cords, user maintenance kit, and 12 months of service coverage |
Downloads
HP Latex R530 Rigid and Flexible Printer Data Sheet
