Description

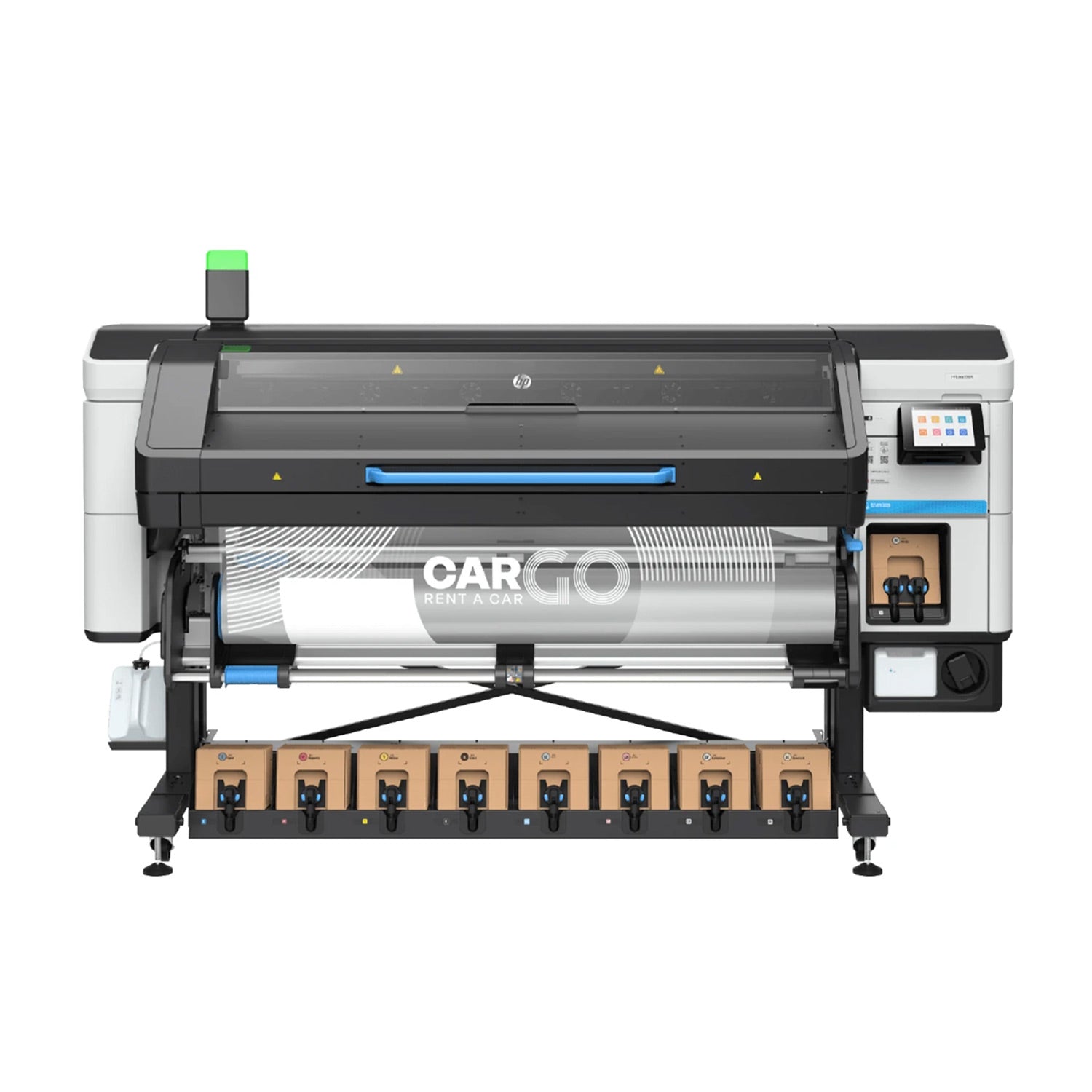

The HP Latex 830 W Printer is a 64-inch HP Latex production printer built for sign shops, print providers, wrap installers, and graphics businesses that need high-volume roll-to-roll printing with advanced white ink capability. Designed for banners, decals, window graphics, vehicle graphics, wallcoverings, displays, floor graphics, signage, textiles, and specialty applications, the Latex 830 W helps shops expand into higher-value print work while keeping production fast and efficient.
With HP Latex white ink, the HP Latex 830 W supports clear media, dark media, layered graphics, window displays, white underflood, white overflood, spot white, and multi-layer specialty graphics. Automatic white ink circulation helps reduce manual maintenance and supports dependable white ink performance during production. For shops producing premium decals, window graphics, retail displays, and specialty signage, the 830 W adds application flexibility without slowing down everyday production.
The HP Latex 830 W is designed for high-throughput production with 3-liter ink cartridges, hot swap functionality, HP Pixel Control technology, and the HP Embedded Spectrophotometer for custom ICC profiles and consistent color output. With print speeds up to 388 ft²/hr in draft mode, instant-dry HP Latex output, spindle-less front-loading, and automated media handling, the Latex 830 W gives busy shops the speed, color control, and white ink versatility needed for professional wide format production.
Specifications
- 64-inch HP Latex production printer with white ink for signage, graphics, décor, and display production
- High-opacity white ink supports clear media, dark media, layered graphics, window graphics, and specialty applications
- 3-liter ink cartridges with hot swap functionality for high-volume production workflows
- HP Pixel Control technology helps deliver uniform color, smooth gradients, and sharp detail
- HP Embedded Spectrophotometer supports custom ICC profiles and consistent color output
- Print speeds up to 388 ft²/hr in draft mode
- Supports roll media up to 64 in. wide and up to 121 lb.
- Spindle-less front-loading, roll feed, take-up reel, media saver, wiper roller, and automatic horizontal cutter
Popular Applications
- Window Graphics and Clear Decals
- White Ink Specialty Graphics
- Banners and Posters
- Vehicle Graphics and Automotive Graphics
- Exterior Signage
- POP Retail Graphics
- Tradeshow and Event Displays
- Wall Graphics and Wallcoverings
- Interior and Exterior Floor Graphics
- Architectural Finishes
- Textiles and Soft Signage
- Stickers and Decals
| MODEL | HP Latex 830 W Printer |
| PRINT TECHNOLOGY | HP Latex Printing Technologies |
| INK TYPE | Water-based HP Latex Inks |
| INK CONFIGURATION | Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, White, Optimizer, and Overcoat |
| INK SERIES | HP 873 |
| INK CARTRIDGE SIZE | 3 L per cartridge |
| INK CARTRIDGES | 9 cartridges: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, White, Optimizer, and Overcoat |
| PRINTHEADS | 10 printheads: 7 HP Latex Printheads, 1 HP Latex Optimizer Printhead, and 2 HP Latex White Printheads |
| MAX MEDIA WIDTH | 64 in. |
| PRINT RESOLUTION | Up to 1200 x 1200 dpi |
| PRINT SPEED | 388 ft²/hr Draft, 269 ft²/hr Speed, 215 ft²/hr Standard, 183 ft²/hr Quality, 118 ft²/hr High Quality |
| WHITE INK PRINT SPEEDS | 183 ft²/hr White Spot, 96 ft²/hr White Overflood, 47 ft²/hr White Underflood, 32 ft²/hr White 3 Layers, 16 ft²/hr White 5 Layers |
| COLOR MANAGEMENT | HP Pixel Control technology and HP Embedded Spectrophotometer for custom ICC profiles |
| MEDIA HANDLING | Roll feed, take-up reel, wiper roller, media saver, and automatic horizontal cutter for vinyl, banner, canvas, paper-based media, and film |
| ROLL SIZE | 16.5 to 64-in rolls, with full support for 23 to 64-in rolls |
| MAX ROLL WEIGHT | 121 lb. |
| MAX ROLL DIAMETER | 9.8 in. |
| MEDIA THICKNESS | Up to 19.7 mil |
| MEDIA TYPES | Banners, self-adhesive vinyls, films, fabrics, papers, wallcoverings, canvas, synthetics, mesh, and textiles |
| CONNECTIVITY | Gigabit Ethernet 1000Base-T |
| POWER REQUIREMENTS | 200-240 V, two wires and PE, 50/60 Hz, two power cords, 16 A max per power cord |
| POWER CONSUMPTION | 1.5-2.5 kW printing, 5 kW peak, 95 W ready, less than 19 W sleep, less than 0.25 W off |
| ENVIRONMENTAL CERTIFICATIONS | ENERGY STAR®, UL ECOLOGO®, UL GREENGUARD Gold, EPEAT, RoHS, REACH, OSHA, CE, AgBB, and French VOC A+ |
| OPERATING TEMPERATURE | 59° to 86° F |
| OPERATING HUMIDITY | 20 to 80% RH, non-condensing |
| ACOUSTICS | 60 dB(A) printing, 38 dB(A) idle, less than 20 dB(A) sleep |
| PRINTER DIMENSIONS | 101.7 in. W x 34.1 in. D x 55.2 in. H |
| SHIPPING DIMENSIONS | 108.4 in. W x 43.3 in. D x 65.6 in. H |
| OPERATING AREA | 110 in. x 82.7 in. |
| PRINTER WEIGHT | 661 lb. |
| SHIPPING WEIGHT | 965.62 lb. |
| WARRANTY | One-year limited hardware warranty |
| INCLUDED ITEMS | HP Latex 830 W Printer, printheads, maintenance cartridge with ink collection unit, additional ink collection unit, condensation collector kit, power cords, beacon accessory, manual purge syringe kit, dry bag for white ink purge, user maintenance kit, edge holders, 2-in spindle adaptor, lubrication felts kit, quick reference guide, documentation software, spanner size 17, and screwdriver T-25 |
Downloads
HP Latex 830 W Printer Data Sheet
