Description

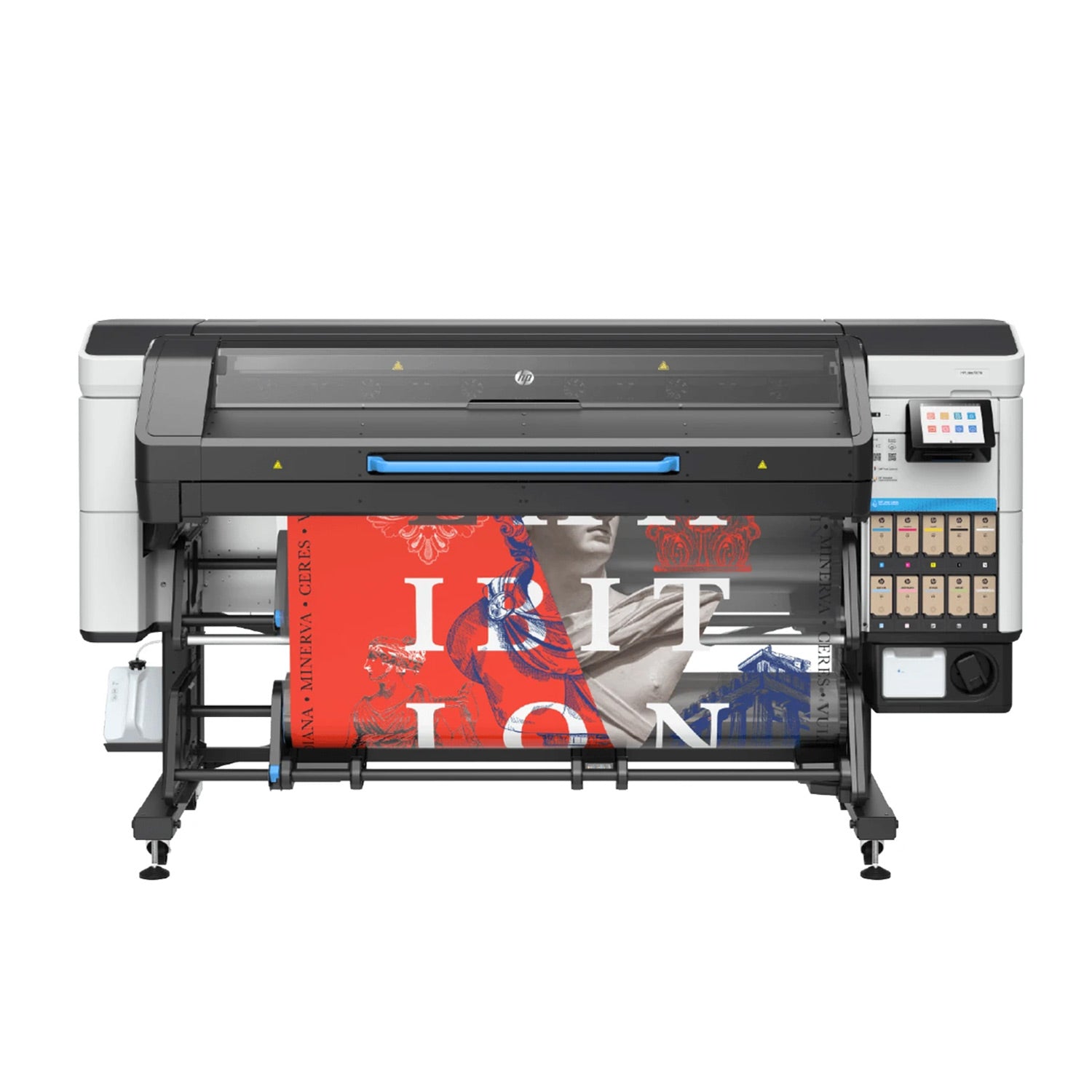

The HP Latex 730 W Printer is a 64-inch wide format HP Latex printer built for sign shops, print providers, wrap installers, and graphics businesses that want high-production roll-to-roll printing with advanced white ink capability. Designed for banners, decals, window graphics, vehicle graphics, wallcoverings, displays, floor graphics, signage, and specialty applications, the Latex 730 W helps shops expand into higher-value print work with consistent color and flexible media support.
With HP Latex white ink, the HP Latex 730 W makes it easier to produce layered graphics, clear media decals, window displays, dark media applications, and premium specialty signage. Automatic white ink recirculation helps reduce manual maintenance, while white print modes support spot white, underflood, overflood, and multi-layer print workflows. HP notes that white ink capability is specific to the 730 W and 830 W models. :contentReference[oaicite:1]{index=1}
The HP Latex 730 W also delivers strong production performance with HP Pixel Control technology, an HP Embedded Spectrophotometer for custom ICC profiles, 1-liter ink cartridges, hot swap functionality, spindle-less front-loading, and outdoor print speeds up to 334 ft²/hr. Water-based HP Latex Inks produce odorless prints that come out dry and ready for finishing, helping shops move quickly from printing to lamination, cutting, installation, or delivery.
Specifications
- 64-inch HP Latex wide format printer with white ink for signage, graphics, décor, and display production
- HP Latex white ink supports clear media, dark media, layered graphics, window graphics, and specialty applications
- HP Pixel Control technology helps deliver uniform color, smooth gradients, and sharp detail
- HP Embedded Spectrophotometer supports custom ICC profiles and consistent color output
- Outdoor print speeds up to 334 ft²/hr
- 1-liter ink cartridges with hot swap functionality for efficient production workflows
- Supports roll media up to 64 in. wide and up to 121 lb.
- Spindle-less front-loading, roll feed, take-up reel, media saver, wiper roller, and automatic horizontal cutter
Popular Applications
- Window Graphics and Clear Decals
- White Ink Specialty Graphics
- Banners and Posters
- Vehicle Graphics and Automotive Graphics
- Exterior Signage
- POP Retail Graphics
- Tradeshow and Event Displays
- Wall Graphics and Wallcoverings
- Interior and Exterior Floor Graphics
- Architectural Finishes
| MODEL | HP Latex 730 W Printer |
| PRINT TECHNOLOGY | HP Latex Printing Technologies |
| INK TYPE | Water-based HP Latex Inks |
| INK CONFIGURATION | Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, White, Optimizer, and Overcoat |
| INK CARTRIDGE SIZE | 1 L per cartridge |
| INK SERIES | HP 832 |
| MAX MEDIA WIDTH | 64 in. (1.63 m) |
| PRINT RESOLUTION | Up to 1200 x 1200 dpi |
| PRINT SPEED | 334 ft²/hr Draft, 226 ft²/hr Speed, 183 ft²/hr Standard, 172 ft²/hr Quality, 118 ft²/hr High Quality |
| WHITE INK PRINT SPEEDS | 183 ft²/hr White Spot, 97 ft²/hr White Overflood, 47 ft²/hr White Underflood, 32 ft²/hr White 3 Layers, 16 ft²/hr White 5 Layers |
| PRINTHEADS | 10 printheads: 7 HP Latex Printheads, 1 HP Latex Optimizer Printhead, and 2 HP Latex White Printheads |
| COLOR MANAGEMENT | HP Pixel Control technology and HP Embedded Spectrophotometer for custom ICC profiles |
| MEDIA HANDLING | Roll feed, take-up reel, wiper roller, media saver, and automatic horizontal cutter for vinyl, banner, canvas, paper-based media, and film |
| ROLL SIZE | 18 to 64-in rolls, with full support for 23 to 64-in rolls |
| MAX ROLL WEIGHT | 121 lb. (55 kg) |
| MAX ROLL DIAMETER | 9.8 in. / 250 mm |
| MEDIA THICKNESS | Up to 19.7 mil |
| MEDIA TYPES | Banners, self-adhesive vinyls, films, fabrics, papers, wallcoverings, canvas, synthetics, mesh, and textiles |
| CONNECTIVITY | Gigabit Ethernet 1000Base-T |
| POWER REQUIREMENTS | 200-240 V, two wires and PE, 50/60 Hz, two power cords |
| POWER CONSUMPTION | 1.5-2.5 kW printing, 5 kW peak, 95 W ready, less than 19 W sleep, less than 0.25 W off |
| ENVIRONMENTAL CERTIFICATIONS | ENERGY STAR®, UL ECOLOGO®, UL GREENGUARD Gold, EPEAT, RoHS, REACH, OSHA, CE, AgBB, and French VOC A+ |
| PRINTER DIMENSIONS | 101.7 in. W x 33.6 in. D x 55.2 in. H |
| SHIPPING DIMENSIONS | 110.2 in. W x 44.5 in. D x 50 in. H |
| OPERATING AREA | 110 in. x 82.7 in. |
| PRINTER WEIGHT | 588.63 lb. |
| SHIPPING WEIGHT | 810 lb. |
| WARRANTY | One-year limited hardware warranty |
| INCLUDED ITEMS | HP Latex 730 W Printer, white ink module, printheads, maintenance cartridge with ink collection unit, additional ink collection unit, printer stand, take-up reel, condensation collector kit, empty cartridge for white ink recirculation, manual purge syringe kit, power cords, user maintenance kit, edge holders, 2-in spindle adaptor, lubrication felts kit, quick reference guide, documentation software, spanner size 17, and screwdriver T-25 |
Downloads
HP Latex 730 W Printer Data Sheet
