Description

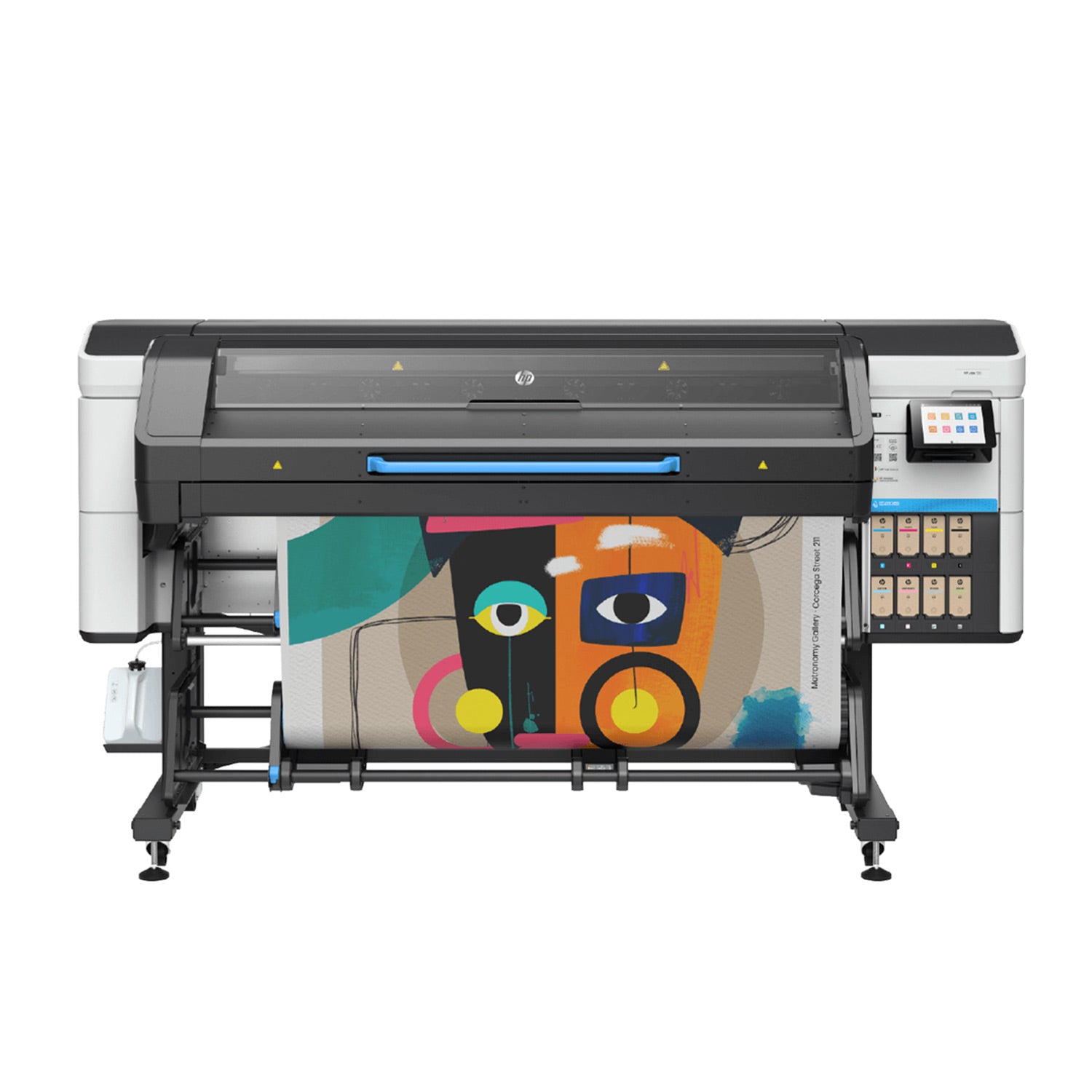

The HP Latex 730 Printer is a 64-inch wide format HP Latex printer built for sign shops, print providers, wrap installers, and graphics businesses that need consistent color, reliable roll-to-roll production, and efficient daily operation. Designed for banners, posters, vinyl graphics, wallcoverings, displays, vehicle graphics, window graphics, and décor applications, the Latex 730 gives shops the speed and quality needed to handle a wide range of profitable print jobs.
With HP Pixel Control technology, the HP Latex 730 delivers uniform colors through precise ink mixing and distribution. The built-in HP Embedded Spectrophotometer helps shops create custom ICC profiles and maintain consistent quality across repeat jobs, different media types, and customer brand color requirements. Water-based HP Latex Inks produce vivid color, sharp text, smooth gradients, and prints that come out dry and ready for finishing.
The HP Latex 730 is designed to simplify production with 1-liter ink cartridges, spindle-less front-loading, roll-to-roll media handling, an automatic horizontal cutter, and HP PrintOS tools for remote production control. With outdoor print speeds up to 334 ft²/hr, a maximum media width of 64 inches, and support for rolls up to 121 lb., the Latex 730 is a strong fit for shops ready to increase output while keeping operation clean, efficient, and easy to manage.
Specifications
- 64-inch HP Latex wide format printer for signage, graphics, décor, and display production
- Water-based HP Latex Inks produce odorless prints that are dry and ready for finishing
- HP Pixel Control technology helps deliver uniform color and smooth gradients
- HP Embedded Spectrophotometer supports custom ICC profiles and consistent color output
- Outdoor print speeds up to 334 ft²/hr
- 1-liter ink cartridges help support higher-production workflows
- Supports roll media up to 64 in. wide and up to 121 lb.
- Spindle-less front-loading, roll feed, take-up reel, and automatic horizontal cutter
Popular Applications
- Banners and Posters
- Adhesive Vinyl Graphics
- Vehicle Graphics
- Exterior Signage
- Window Graphics
- Wall Graphics and Wallcoverings
- POP Retail Graphics
- Tradeshow and Event Displays
- Floor Graphics
- Architectural Finishes
| MODEL | HP Latex 730 Printer |
| PRINT TECHNOLOGY | HP Latex Printing Technologies |
| INK TYPE | Water-based HP Latex Inks |
| INK CARTRIDGE SIZE | 1 L |
| INK SERIES | HP 832 |
| MAX MEDIA WIDTH | 64 in. (1.63 m) |
| PRINT RESOLUTION | Up to 1200 x 1200 dpi |
| PRINT SPEED | Up to 334 ft²/hr outdoor |
| COLOR MANAGEMENT | HP Pixel Control technology and HP Embedded Spectrophotometer for custom ICC profiles |
| MEDIA HANDLING | Roll feed, take-up reel, media saver, and automatic horizontal cutter for vinyl, banner, canvas, paper-based media, and film |
| ROLL SIZE | 18 to 64-in rolls, with full support for 23 to 64-in rolls |
| MAX ROLL WEIGHT | 121 lb. (55 kg) |
| MAX ROLL DIAMETER | 9.8 in. / 250 mm |
| MEDIA THICKNESS | Up to 19.7 mil |
| MEDIA TYPES | Banners, self-adhesive vinyls, films, fabrics, papers, wallcoverings, canvas, synthetics, mesh, and textiles |
| CONNECTIVITY | Gigabit Ethernet 1000Base-T |
| SOFTWARE | HP PrintOS tools for production monitoring and workflow support |
| POWER REQUIREMENTS | 200-240 V, two wires and PE, 50/60 Hz, two power cords |
| ENVIRONMENTAL CERTIFICATIONS | UL ECOLOGO®, ENERGY STAR®, EPEAT, RoHS, REACH, OSHA, CE, AgBB, and UL GREENGUARD Gold |
| PRINTER DIMENSIONS | 101.7 in. W x 33.6 in. D x 55.2 in. H |
| SHIPPING DIMENSIONS | 110.2 in. W x 44.5 in. D x 50 in. H |
| PRINTER WEIGHT | 575 lb. |
| SHIPPING WEIGHT | 810 lb. |
| WARRANTY | One-year limited hardware warranty |
| INCLUDED ITEMS | HP Latex 730 Printer, printheads, maintenance cartridge with ink collection unit, additional ink collection unit, printer stand, take-up reel, condensation collector kit, power cords, user maintenance kit, edge holders, 2-in spindle adaptor, lubrication felts kit, quick reference guide, documentation software, spanner size 17, and screwdriver T-25 |
Downloads
HP Latex 730 Printer Data Sheet
