Description

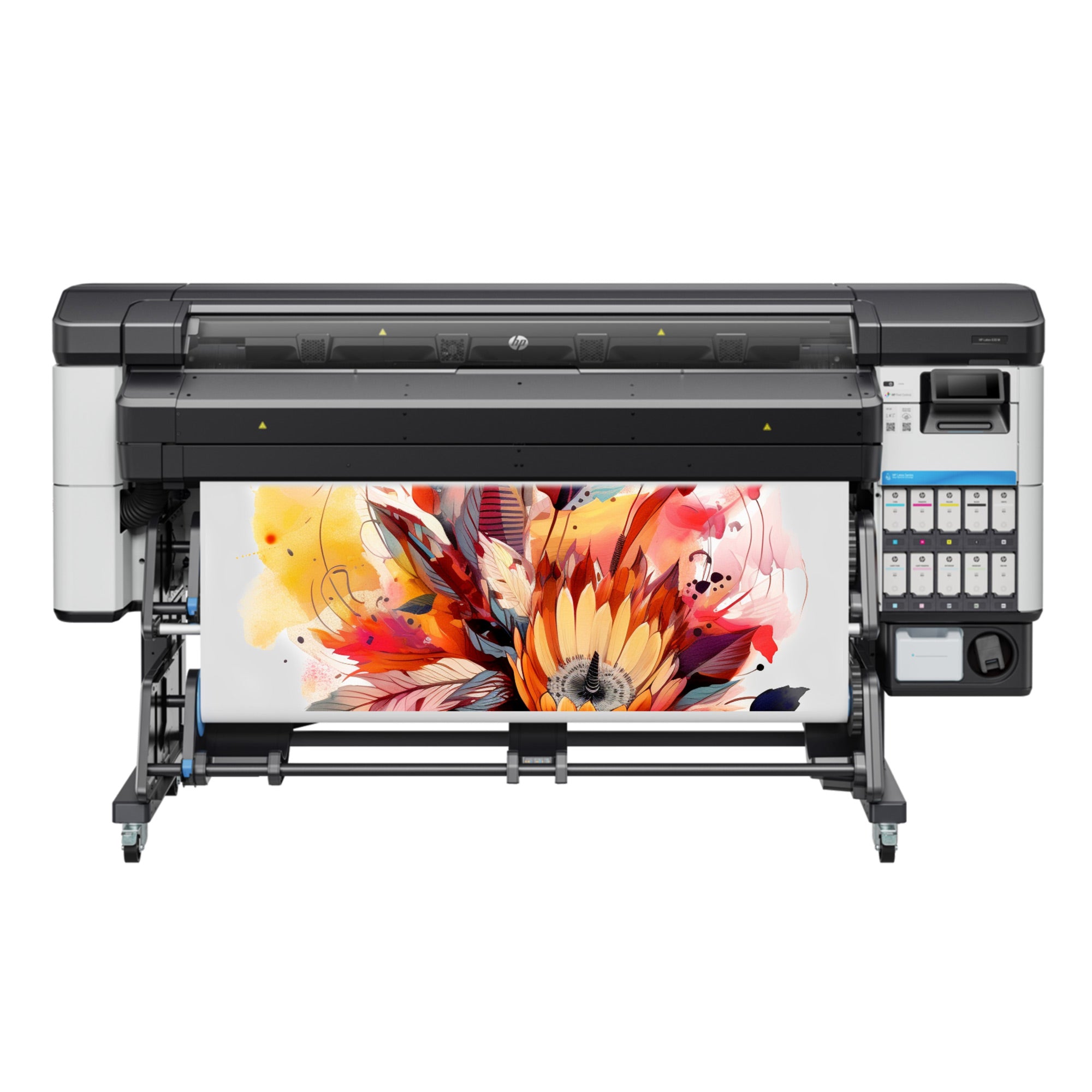

The HP Latex 630 W Printer is a 64-inch wide format HP Latex printer built for sign shops, print providers, wrap installers, and graphics businesses that want to add white ink applications without moving into a larger production platform. With water-based HP Latex Ink technology and high-opacity white ink, the Latex 630 W supports decals, window graphics, clear and colored media, retail displays, signage, wallcoverings, vehicle graphics, and specialty applications.
The HP Latex 630 W supports spot white, white underflood, white overflood, and multi-layer printing, giving shops more flexibility for clear media, dark substrates, and premium graphics. Automatic white ink recirculation and an offline rotating chamber help reduce maintenance and keep white ink ready for production, while prints come out dry and ready for finishing, lamination, cutting, or installation. :contentReference[oaicite:1]{index=1}
For everyday color production, the Latex 630 W delivers speeds up to 151 ft²/hr in standard mode and up to 1200 x 1200 dpi resolution. Automatic maintenance, user-replaceable printheads, front-loading media handling, job storage up to 10 GB, and HP PrintOS remote monitoring help simplify operation for busy graphics businesses. :contentReference[oaicite:2]{index=2}
Specifications
- 64-inch HP Latex wide format printer with high-opacity white ink
- White ink supports spot white, underflood, overflood, and multi-layer applications
- Automatic white ink recirculation and offline rotating chamber help simplify white ink maintenance
- Color print speeds up to 377 ft²/hr and 151 ft²/hr in standard mode
- White print speeds up to 64 ft²/hr in spot white mode
- Print resolution up to 1200 x 1200 dpi
- Supports media up to 64 in. wide and rolls up to 93 lb.
- Roll feed, take-up reel, and automatic horizontal cutter for common roll media
- Automatic maintenance, user-replaceable printheads, and front-loading media handling
- Includes HP SAi Flexi RIP Basic Software and HP PrintOS production tools
Popular Applications
- White Ink Window Graphics
- Clear and Transparent Decals
- White and Color Stickers
- Retail and POP Displays
- Banners and Posters
- Vehicle Graphics
- Wall Graphics and Wallcoverings
- Backlit Films and Light Boxes
- Adhesive Vinyl Graphics
- Décor and Specialty Graphics
| MODEL | HP Latex 630 W Printer |
| PRINT TECHNOLOGY | HP Latex Printing Technologies |
| INK TYPE | Water-based HP Latex Inks with white ink |
| INK SERIES | HP 832 Latex Inks |
| INK CARTRIDGE SIZE | 1-liter cartridges |
| WHITE INK | High-opacity HP Latex White Ink with automatic recirculation and offline rotating chamber |
| WHITE INK MODES | Spot white, white overflood, white underflood, and 3-layer printing |
| MAX PRINT WIDTH | 64 in. |
| PRINT RESOLUTION | Up to 1200 x 1200 dpi |
| COLOR PRINT SPEED | 377 ft²/hr Max Speed, 194 ft²/hr Speed, 151 ft²/hr Standard, 118 ft²/hr Quality, 83 ft²/hr High Saturation, 71 ft²/hr Standard for Backlits and Textiles |
| WHITE PRINT SPEED | 64 ft²/hr White Spot, 33 ft²/hr White Overflood, 17 ft²/hr White Underflood, 11 ft²/hr 3 Layers |
| WHITE INK MAINTENANCE | Automatic ink recirculation and offline rotating chamber help prevent white ink settling and reduce manual maintenance |
| MEDIA HANDLING | Roll feed, take-up reel, front-loading media system, and automatic horizontal cutter for vinyl, banner, canvas, paper-based media, and film |
| ROLL SIZE | 18 to 64-in rolls, with full support for 23 to 64-in rolls |
| MAX ROLL DIAMETER | 9.8 in. |
| MAX ROLL WEIGHT | 93 lb. / 42 kg |
| MEDIA THICKNESS | Up to 19.7 mil |
| MEDIA TYPES | Banners, self-adhesive vinyls, clear and colored films, papers, wallcoverings, canvas, synthetics, fabrics, mesh, textiles, and compatible specialty media |
| CONNECTIVITY | Gigabit Ethernet 1000Base-T |
| SOFTWARE INCLUDED | HP PrintOS and HP SAi Flexi RIP Basic Software |
| JOB STORAGE | Up to 10 GB on-printer job storage for convenient reprints |
| POWER | 200-240 V, two wires and PE, 50/60 Hz, two power cords |
| POWER CONSUMPTION | Approximately 1.4-2.1 kW while printing, 2.9 kW peak, 85 W ready, less than 2.5 W sleep |
| ENVIRONMENTAL FEATURES | Water-based HP Latex Inks with environmental certifications including UL ECOLOGO®, EPEAT, and ENERGY STAR® |
| PRINTER DIMENSIONS | 102.5 in. W x 33.2 in. D x 55.3 in. H |
| PRINTER WEIGHT | Approximately 520 lb. / 236 kg |
| SHIPPING DIMENSIONS | 110.2 in. W x 44.5 in. D x 50 in. H |
| SHIPPING WEIGHT | Approximately 778 lb. / 353 kg |
| WARRANTY | One-year limited hardware warranty |
| INCLUDED ITEMS | HP Latex 630 W Printer, printheads, maintenance cartridge, empty cartridge for white ink recirculation, white ink module, printer stand, take-up reel, user maintenance kit, edge holders, quick reference guide, HP SAi Flexi RIP Basic Software, documentation software, power cords, air purgers, and 2-in spindle adaptor |
Downloads
HP Latex 630 W Printer Data Sheet
