Description

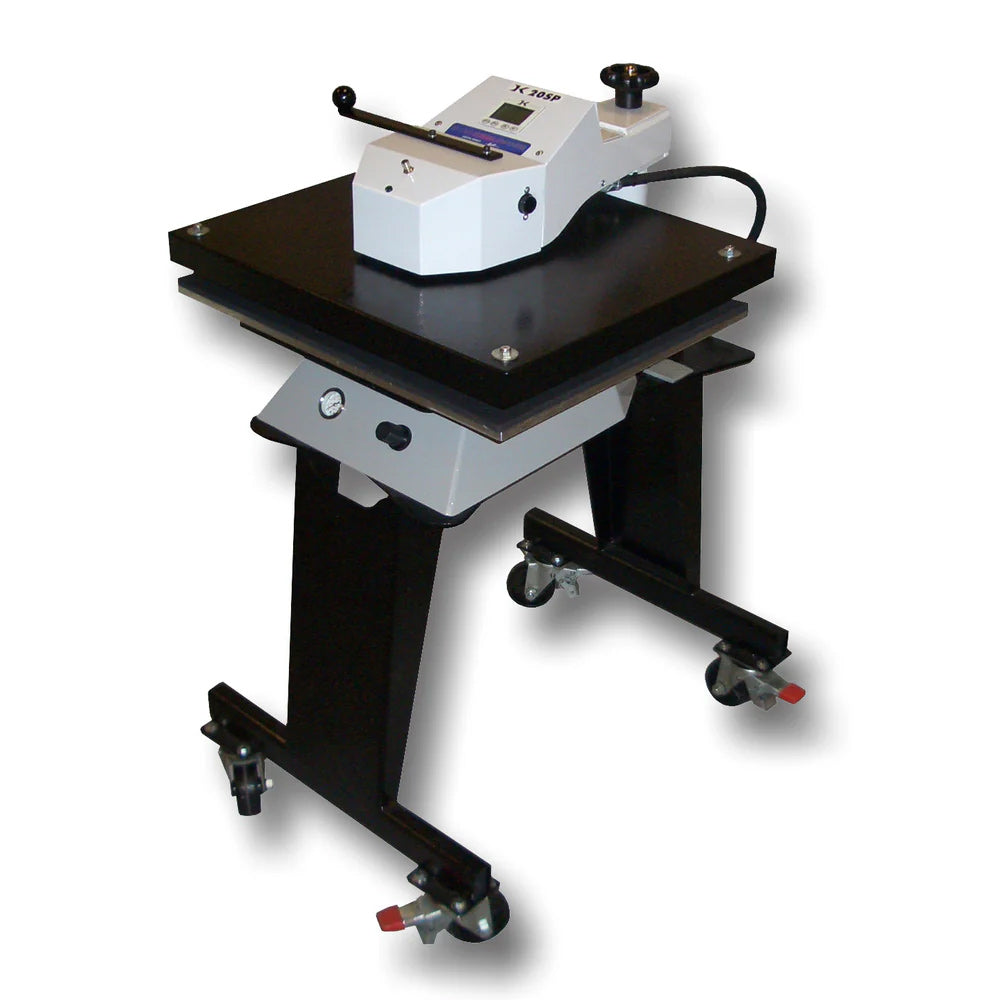

The Geo Knight DK25SP Automatic Digital Swing-Away 20" x 25" is the large-format, production-ready heat press engineered for shops that demand automation, precision, and power. Proudly made in the USA with heavy-duty welded steel, this air-operated swing-away press combines automatic operation with exceptional reliability. Featuring a massive 20" x 25" platen and included stand with locking casters, the DK25SP is ideal for oversized garments, textiles, sublimation, and industrial heat transfer applications.
Key Features
- 20" x 25" automatic air-operated swing-away platen for large-format production
- Includes stand with locking casters for stability and easy mobility
- All-Thread™ lower platen design allows smooth loading and interchangeable tables
- Fully digital temperature control (32–600°F / 0–315°C) with ±2°F accuracy
- Automatic digital timer with dual pre-press timer and end-of-cycle alarms
- Air-pressure regulator and gauge (0–100 PSI) with up to 3,000 lbs cylinder pressure
- 70 programmable presets for fast, repeatable production settings
- SuperCoil-Microwinding™ heater technology for even, consistent heat
- Interchangeable, rotatable tables accommodate substrates up to 2" thick
- Teflon-coated ¾" thick platen for non-stick, easy-clean performance
- Resettable odometer tracks press cycles for maintenance scheduling
- Built-in stand and welded steel frame for continuous, heavy-duty use
| PLATEN SIZE | 20″ × 25″ |
| PRESS STYLE | Automatic air-operated swing-away with stand |
| TEMPERATURE RANGE | 32°F – 600°F (0°C – 315°C) |
| TEMP ACCURACY | ±2°F |
| TIMER | Digital with dual pre-press & cycle alarm |
| PROGRAMMABLE PRESETS | 70 |
| HEATING ELEMENT | SuperCoil-Microwinding™ |
| PRESSURE CONTROL | Air regulator (0–100 PSI) up to 3,000 lbs force |
| MAX MATERIAL THICKNESS | 2″ |
| ELECTRICAL SPECS | 4500 W / 21 A / 220 V |
| WEIGHT | ≈420 lbs (with stand) |
| SHIPPING DIMENSIONS | 32″ L × 26″ W × 42″ H |
| FRAME FOOTPRINT | 32″ D × 26″ W (with stand) |
| PLATEN COATING | Teflon (PTFE) |
| WARRANTY | Lifetime platen • 5-yr frame • 3-yr controller • 1-yr parts |
Why the DK25SP is One of the Best Heat Press Machines
The Geo Knight DK25SP is the powerhouse of Geo Knight’s automatic heat press line, designed for professional shops that need larger pressing capacity with effortless automation. With its air-operated swing-away design, digital accuracy, and robust construction, it delivers unmatched consistency and throughput for oversized transfers and production runs.
- Automatic Operation: Push-button, air-powered motion for hands-free productivity on large materials.
- Large-Format Power: 20" x 25" platen accommodates bigger garments, signs, and sublimation panels.
- Digital Precision: Fully programmable time, temperature, and pressure for repeatable professional results.
- Industrial Strength: Built with a welded-steel frame and mounted stand for 24/7 production environments.
- USA-Made Quality: Backed by Geo Knight’s lifetime platen warranty and same-day technical support.
Downloads
Geo Knight DK25SP Brochure (PDF)
Geo Knight DK20SP/DK25SP Owner’s Manual (PDF)
