Description

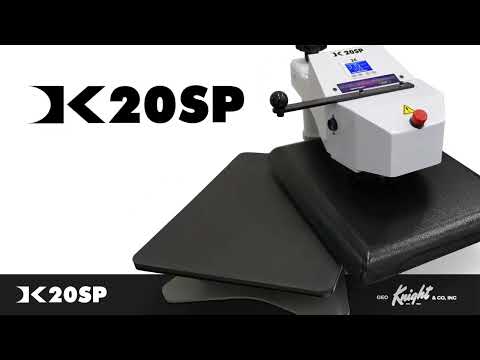

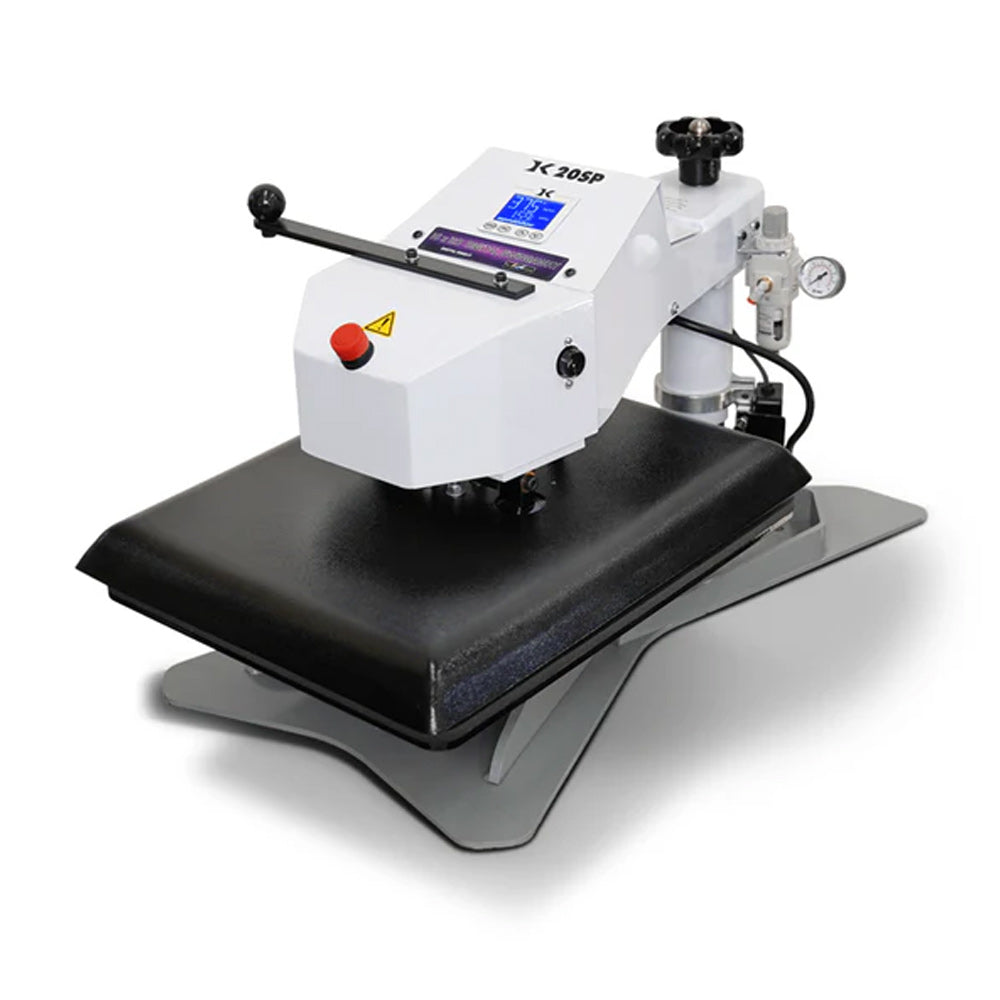

The Geo Knight DK20SP Automatic Digital Swing-Away 16" x 20" is the production-ready heat press built for decorators demanding high volume, high precision, and full automation. Proudly made in the USA of heavy-duty welded steel, this push-button, air-operated machine combines automatic operation with industrial reliability. With a spacious 16" x 20" platen and support for up to 2" thick substrates, it’s ideal for apparel shops, DTF operations, sublimation, and transfer businesses ready for professional throughput.
Key Features
- 16" x 20" automatic air-operated swing-away platen for high-throughput production
- All-Thread™ lower platen design allows easy table loading and interchangeable tables
- Fully digital temperature control (32–600°F / 0–315°C) with ±2°F accuracy
- Automatic digital timer with dual pre-press timer and end-of-cycle alarms
- Air-pressure regulator and gauge (0–100 PSI) with up to 3,000 lbs cylinder pressure
- 70 programmable presets for rapid job changes and repeatable production
- SuperCoil-Microwinding™ heater technology for fast, even heat distribution
- Interchangeable, rotatable tables support substrates up to 2" thick
- Teflon-coated ¾" thick heat platen for non-stick, easy-clean operation
- Resettable odometer tracks press cycles for maintenance planning
- Heavy-duty welded steel frame built for all-day, high-volume use
| PLATEN SIZE | 16″ × 20″ |
| PRESS STYLE | Automatic air-operated swing-away |
| TEMPERATURE RANGE | 32°F – 600°F (0°C – 315°C) |
| TEMP ACCURACY | ±2°F |
| TIMER | Digital with dual pre-press & cycle alarm |
| PROGRAMMABLE PRESETS | 70 |
| HEATING ELEMENT | SuperCoil-Microwinding™ |
| PRESSURE CONTROL | Air regulator (0–100 PSI) up to 3,000 lbs force |
| MAX MATERIAL THICKNESS | 2″ |
| ELECTRICAL SPECS | 1800 W / 15 A / 120 V (220 V optional) |
| WEIGHT | ≈230 lbs |
| SHIPPING DIMENSIONS | 32″ L × 18″ W × 18″ H |
| FRAME FOOTPRINT | 27″ D × 16″ W |
| PLATEN COATING | Teflon (PTFE) |
| WARRANTY | Lifetime platen • 5-yr frame • 3-yr controller • 1-yr parts |
Why the DK20SP is One of the Best Heat Press Machines
The Geo Knight DK20SP stands out as a production-ready, high-efficiency heat press. With its automatic air-operated swing-away design, precise digital controls, and USA-made durability, it’s built for decorators who demand high throughput, consistent results, and minimal operator fatigue.
- Automatic Operation: Push-button air-driven closing and opening for hands-free workflow.
- Production Efficiency: Up to 3,000 lbs of pressing force with repeatable precision for long runs.
- Digital Accuracy: Time, temperature, and pressure control with 70 programmable presets.
- Industrial Build: Welded-steel frame and SuperCoil heater ensure reliability for years of use.
- Versatile Applications: Perfect for HTV, sublimation, DTF, plastisol, and rigid transfers up to 2" thick.
Downloads
Geo Knight DK20SP Brochure (PDF)
Geo Knight DK20SP Owner’s Manual (PDF)
Interested in Pricing, Quote or Demo?
Contact us for the best price on the Geo Knight DK20SP heat press machine, schedule a virtual demo, or ask about financing. Chat live, call (800) 527-7778, or fill out the form below. Get answers fast.
