Description

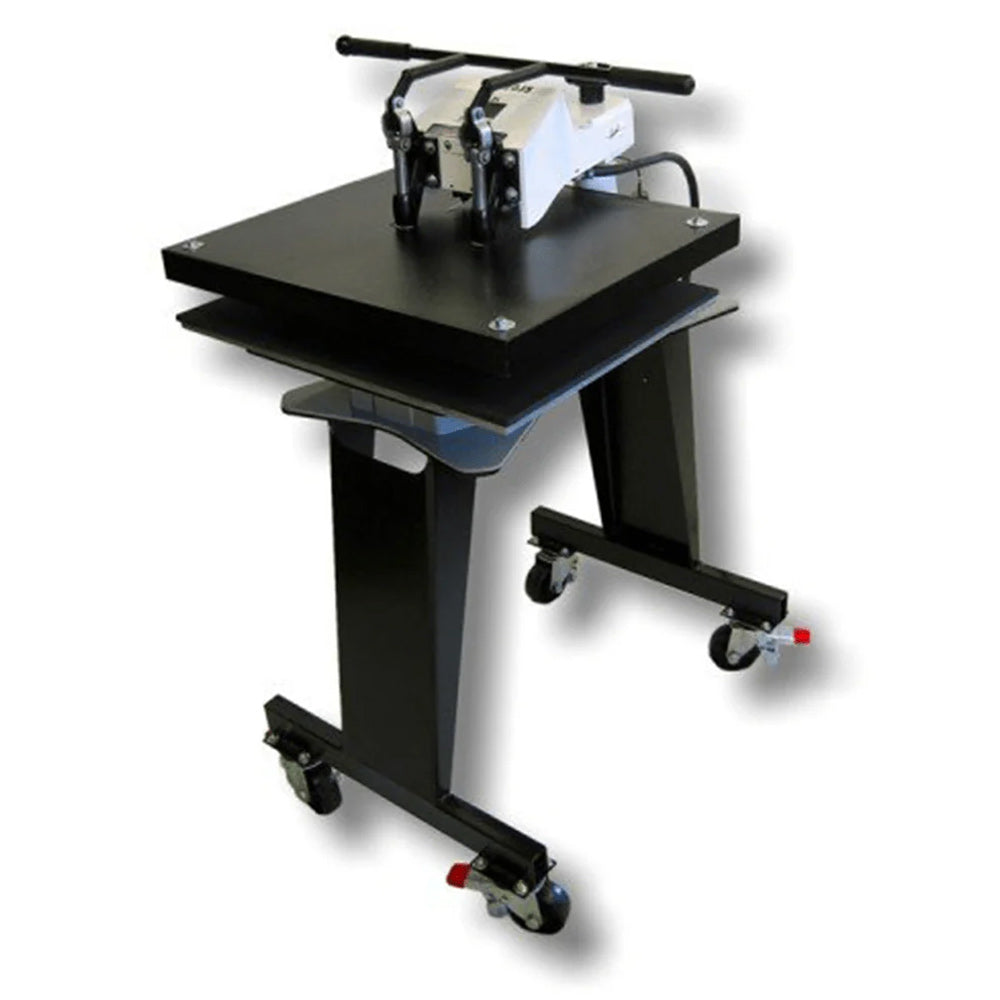

The Geo Knight DK25S Digital Swing-Away 20" x 25" is the jumbo-format version of Geo Knight’s flagship swing-away heat press, built for decorators who need maximum platen size and uncompromising performance. Proudly made in the USA with a heavy-duty welded steel frame, this digital press delivers precise, repeatable heat transfer results on a large 20" x 25" platen. Ideal for oversized garments, blankets, signage, and industrial applications, the DK25S supports heat transfer vinyl, sublimation, DTF, and plastisol transfers on materials up to 2″ thick.
Key Features
- Expansive 20" x 25" swing-away platen—perfect for large apparel, banners & rigid substrates
- Includes heavy-duty stand with locking casters for stability and mobility
- All-Thread™ lower platen design allows easy table loading and rotation
- Fully digital temperature control (32–600 °F / 0–315 °C) with ±2 °F accuracy
- Automatic timer with dual pre-press timer and end-of-cycle alarms
- Digital pressure bar graph for consistent, repeatable pressure application
- 70 programmable presets for fast production workflow
- SuperCoil-Microwinding™ heating technology for even heat and quick recovery
- Interchangeable & rotatable lower tables—handles up to 2″ thick products
- Teflon-coated ¾″ thick heat platen for non-stick, easy-clean operation
- Cycle counter tracks number of uses for maintenance scheduling
- Lifetime platen warranty and industrial-grade build weighing approximately 420 lbs
| PLATEN SIZE | 20″ × 25″ |
| PRESS STYLE | Manual swing-away with stand |
| TEMPERATURE RANGE | 32 °F – 600 °F (0 °C – 315 °C) |
| TEMP ACCURACY | ±2 °F |
| TIMER | Digital with dual pre-heat & cycle alarm |
| PROGRAMMABLE PRESETS | 70 |
| HEATING ELEMENT | SuperCoil-Microwinding™ |
| PRESSURE INDICATOR | Digital bar graph |
| MAX MATERIAL THICKNESS | 2″ |
| ELECTRICAL SPECS | 4500 W / 21 A / 220 V |
| WEIGHT | 420 lbs (with stand) |
| SHIPPING DIMENSIONS | 32″ L × 26″ W × 42″ H |
| FRAME FOOTPRINT | 32″ D × 26″ W (with stand) |
| PLATEN COATING | Teflon (PTFE) |
| WARRANTY | Lifetime platen • 5-yr frame • 3-yr controller • 1-yr parts |
Why the DK25S is One of the Best Large-Format Heat Press Machines
The Geo Knight DK25S offers the same proven engineering as the DK20S but with a larger 20" x 25" platen—making it one of the most capable manual swing-away heat presses on the market. Built for professionals who need more pressing area and industrial-grade power, it delivers precise pressure, even heat, and dependable results for large-format production environments.
- Oversized Swing-Away Design: Provides full access to the platen while ensuring even pressure distribution across large substrates.
- Large-Scale Versatility: Perfect for oversized apparel, textiles, signage, sublimation panels, and more up to 2" thick.
- Precision Digital Controls: Fully adjustable time, temperature, and pressure with 70 programmable presets for repeatable results.
- Industrial Build Quality: Heavy-duty welded steel frame and included stand with locking casters provide rock-solid stability.
- Made in the USA: Backed by Geo Knight’s lifetime platen warranty and renowned technical support.
Downloads
Geo Knight DK25S Brochure (PDF)
Geo Knight DK20S/DK25S Owner’s Manual (PDF)
