Epson SureColor® S80600 Large Format Printer
Outstanding Photographic Quality
The 64-inch SureColor S80600 features newly-developed Epson UltraChrome® GS3 9-color solvent ink – including an all-new Red solvent along with the option for white or metallic silver inks – for outstanding photographic print quality, durability, and media compatibility. When combined with an all-new precision media feeding system and a high-performance Dual-Array PrecisionCore® TFP print head, the SureColor S80600 is one of the most productive and photographic sign printers available.
Features at a glance:
- 64‑Inch roll‑to‑roll printer with included auto take‑up reel
- 9‑color Epson UltraChrome® GS3 solvent ink
- Options for white and metallic inks provide creative flexbility to print on diverse media or create eye-popping graphics
- Create adhesive vinyl output at up to 195 ft2 per hour
- Fully loaded print solution including an ONYX® GamaPrint™ Pro RIP
What's in the box?
- SureColor S80600 printer
- Onyx GamaPrint Pro RIP
- Substrate Support System
- Additional Fabric Wiper and Air Filters
- Full Set of Cleaning Cartridges (T696000)
- Waste Ink Bottle
- Documentation
- Additional Media Drying System Not Included and is Optional
Epson SureColor S-Series Overview
UltraChrome GS3 Inks

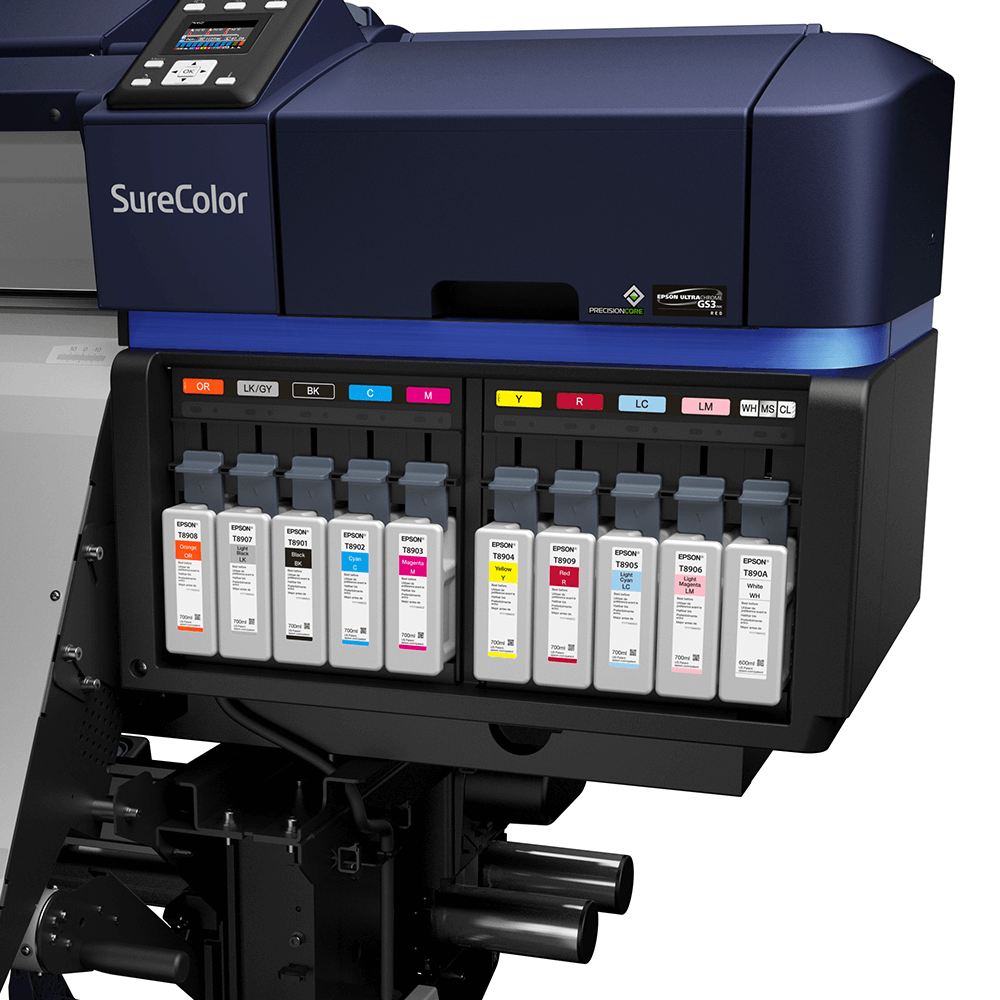

- Production Capacity — high-capacity ink cartridges at 700 ml per color
- Extreme Image Quality — photographic image quality with the largest color gamut in its class
- Superior Media Compatibility — print on virtually any media type from adhesive vinyl to banner material
- Same-Day Lamination — first solvent printers to offer same day lamination
- Environmentally Responsible — no special ventilation or air purification is required
- 3M MCS Warranty — the most comprehensive warranty program in the signage industry is now available on all standard UltraChrome GS3 Inks1
- Avery ICS Performance Guarantee – Verified and tested by one of the top media manufacturers in the world
- Epson S-Series Rewards Program — earn up to five years of coverage simply by using genuine Epson ink and media
- Pantone Certification — Reach up to 98.2% Pantone coverage, the highest coverage in its class
PrecisionCore TFP Print Heads
- Consistent Color — efficient, precise and repeatable performance with excellent image quality
- Precision — low vibration meniscus control for highly accurate dot shape and placement
- PrecisionCore TFP Printhead — dual one-inch wide print head with 720 nozzles per color
- Epson Precision Dot — delivers best-in-class image quality at commercial-level print speeds
- Robust Print Head Design — designed specifically for the high-demands of production environments
Specifications
| PRINTER WIDTH | 64" |
| PRINTHEAD CONFIGURATION | Dual-array PrecisionCore TFP |
| INK TECHNOLOGY | Epson UltraChrome GS3 with Red |
| MAXIMUM COLOR CONFIGURATION | 10-Color |
| BASE COLOR CONFIGURATION | CMYK + LC + LM + LK + OR + R |
| OPTIONAL COLOR CONFIGURATION | N/A |
| MAXIMUM INK CAPACITY PER COLOR | 700 mL |
| SAME-DAY LAMINATION | Yes |
| PRODUCTION SPEED - BANNER & SCRIM | 340 sq ft/hr |
| PRODUCTION SPEED - ADHESIVE VINYL | 195 sq ft/hr |
| MAXIMUM PRINT SPEED - WHITE OR METALLIC SILVER | 135 sq ft/hr (WT) or 43 sq ft/hr (MS) |
| ADDITIONAL HIGH-SPEED DRYER | Optional |
| STANDARD CONNECTIVITY | USB 2.0 & GIGABIT ETHERNET |
| DIMENSIONS | 103" x 34" x 53" (2616 mm x 609 mm x 1346 mm) W x D x H |
| WEIGHT | 615 lb (278 kg) |
| STANDARD LIMITED WARRANTY | 1-YEAR ON-SITE |
| INCLUDED RIP | ONYX® |
| REWARDS PROGRAM | YES |
Notes
1 Note that warranty coverage for the printhead and ink delivery system is terminated if the printer is ever used with new or refilled ink cartridges, inks, or ink delivery systems other than the UltraChrome GS3 system for which the printer was designed.
