Epson SureColor® S40600 Large Format Printer
The Best Entry‑Level Sign Printer

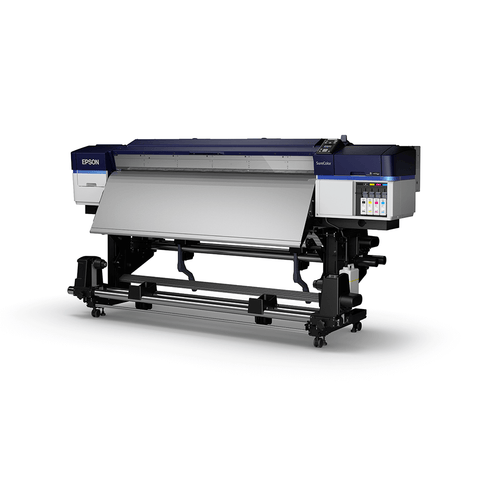

The 64-inch SureColor S40600 features newly-developed Epson UltraChrome® GS3 4-color solvent ink for outstanding print quality, durability, and media compatibility. When combined with an all-new precision media feeding system and a high-performance PrecisionCore® TFP print head, the SureColor S40600 is capable of producing sellable quality banner at 215 ft2 per hour, while also producing adhesive vinyl output at up to 170 ft2 per hour – making the new SureColor S40600 the ideal entry-level sign printer for any size print shop.
Features at a glance:
- 64‑Inch roll‑to‑roll printer with included auto take‑up reel
- 4‑color Epson UltraChrome® GS3 solvent ink
- Produce sellable quality banners at 215 ft2 per hour
- Create adhesive vinyl output at up to 170 ft2 per hour
- Fully loaded print solution including an ONYX® GamaPrint™ Pro RIP
What's in the box?
- SureColor S40600 printer
- Onyx GamaPrint Pro RIP
- Substrate Support System
- Additional Fabric Wiper and Air Filters
- Full Set of Cleaning Cartridges (T696000)
- Waste Ink Bottle
- Documentation
- Additional Media Drying System Not Included and is Optional
Epson SureColor S-Series Overview

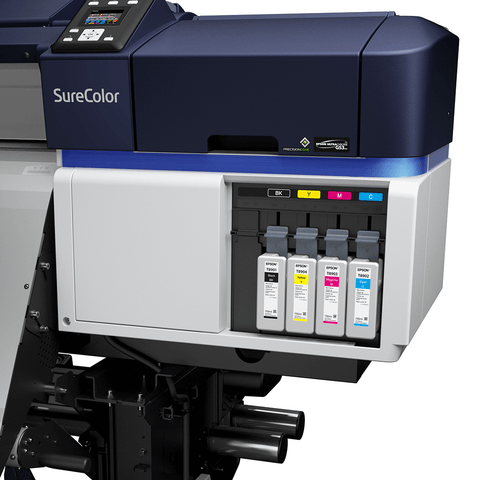

UltraChrome GS3 Inks
- Production Capacity — high-capacity ink cartridges at 700 ml per color
- Extreme Color Gamut — produce vibrant images using just four colors
- Superior Media Compatibility — print on virtually any media type from adhesive vinyl to banner material
- Same-Day Lamination — first solvent printers to offer same day lamination
- Environmentally Responsible — no special ventilation or air purification is required
- 3M MCS Warranty — the most comprehensive warranty program in the signage industry is now available on all standard UltraChrome GS3 Inks1
- Avery ICS Performance Guarantee – Verified and tested by one of the top media manufacturers in the world
- Epson S-Series Rewards Program — earn up to five years of coverage simply by using genuine Epson ink and media
PrecisionCore TFP Print Heads
- Consistent Color — efficient, precise and repeatable performance with excellent image quality
- Precision — low vibration meniscus control for highly accurate dot shape and placement
- PrecisionCore TFP Printhead — one-inch wide print head with 720 nozzles per color
- Epson Precision Dot — delivers best-in-class image quality at commercial-level print speeds
- Robust Print Head Design — designed specifically for the high-demands of production environments
Specifications
| PRINTER WIDTH | 64" |
| PRINTHEAD CONFIGURATION | PrecisionCore TFP |
| INK TECHNOLOGY | Epson UltraChrome GS3 |
| MAXIMUM COLOR CONFIGURATION | 4-Color |
| BASE COLOR CONFIGURATION | CMYK |
| OPTIONAL COLOR CONFIGURATION | N/A |
| MAXIMUM INK CAPACITY PER COLOR | 700mL |
| SAME-DAY LAMINATION | Yes |
| PRODUCTION SPEED - BANNER & SCRIM | 215 sq ft/hr |
| PRODUCTION SPEED - ADHESIVE VINYL | 170 sq ft/hr |
| MAXIMUM PRINT SPEED - WHITE OR METALLIC SILVER | N/A |
| STANDARD CONNECTIVITY | USB 2.0 & GIGABIT ETHERNET |
| DIMENSIONS | 103" x 34" x 53" (2616 mm x 609 mm x 1346 mm) W x D x H |
| WEIGHT | 615 lb (278 kg) |
| STANDARD LIMITED WARRANTY | 1-YEAR ON-SITE |
| INCLUDED RIP | ONYX® |
| REWARDS PROGRAM | YES |
Notes
1 Note that warranty coverage for the printhead and ink delivery system is terminated if the printer is ever used with new or refilled ink cartridges, inks, or ink delivery systems other than the UltraChrome GS3 system for which the printer was designed.
